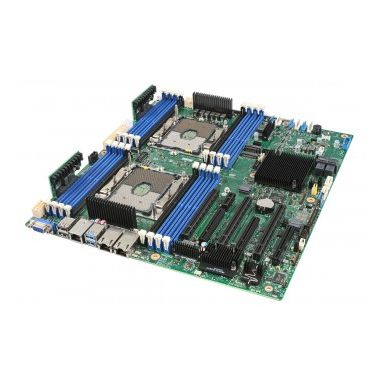

Intel S2600STBR server/workstation motherboard Intel C624
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Motherboard chipset
Intel® C624
On-board graphics adapter
No
Number of DIMM slots
16
Intel Trusted Execution Technology
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Embedded options available
No
CPU configuration (max)
2
Motherboard form factor
SSI EEB
Graphics output
VGA
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
7
Thermal Design Power (TDP)
205 W
Product type
Server/Workstation Board
Maximum number of PCI Express lanes
96
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
ECC supported by processor
Yes
Total number of SATA connectors
12
Status
Launched
Launch date
Q2'19
Supported RAID configuration
SW RAID 0/1/10 (5 optional)
Expected discontinuance date
2023
Form factor
SSI EEB (12 x 13 in)
Last order date
2019-08-03 05:00:37
Additional information URL
https://www.intel.com/content/www/us/en/products/servers/server-boards/server-board-s2600st.html
Performance
Motherboard chipset
Intel® C624
Intel Trusted Execution Technology
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Motherboard form factor
SSI EEB
Processor
Thermal Design Power (TDP)
205 W
Maximum number of PCI Express lanes
96
ECC supported by processor
Yes
Product series
Intel® Server Board S2600ST Family
Product codename
Sawtooth
Number of QPI links
2
Memory
Supported memory types
DDR4-SDRAM
Memory channels
Hexadeca-channel
ECC
Yes
Maximum internal memory
2000 GB
Graphics
On-board graphics adapter
No
Internal I/O
Total number of SATA connectors
12
Number of SATA connectors
12
Rear panel I/O ports
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
Features
Motherboard chipset
Intel® C624
Compatible operating systems
Windows Server 2016*|VMware*|Ubuntu*
Motherboard form factor
SSI EEB
Harmonized System (HS) code
8473301180
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Export Control Classification Number (ECCN)
5A992C
Rack-Friendly board
Yes
Expansion slots
PCI Express x8 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
3
PCI Express slots version
3.0
PCI Express CEM revision
3.0
PCI Express OCuLink connectors (NVMe support)
4
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® Optane⢠Memory Ready
No
Intel Trusted Execution Technology
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel Remote Management Module Support
Yes
Intel Intelligent Power Node Manager
Yes
Integrated systems available
No
Design
Product series
Intel® Server Board S2600ST Family
Product codename
Sawtooth
Other features
Thermal Design Power (TDP)
205 W
PCI Express x8 (Gen 3.x) slots
3
Number of DIMM slots
16
Embedded options available
No
CPU configuration (max)
2
Compatible operating systems
Windows Server 2016*|VMware*|Ubuntu*
Graphics output
VGA
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Export Control Classification Number (ECCN)
5A992C
PCI Express CEM revision
3.0
Chassis type
Tower
Intel Node Manager
Yes
Intel S2600STBR server/workstation motherboard Intel C624
