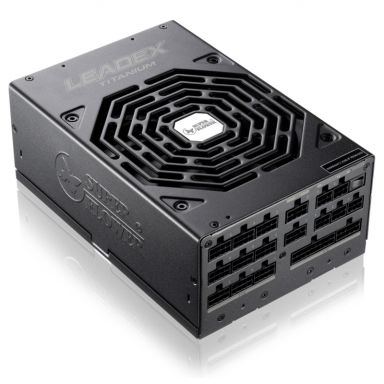

Super Flower SF-1600F14HT power supply unit 1600 W 20+4 pin ATX Black
Out of Stock
|
Call For Price (0808 189 1246)
Cooling
Fan diameter
14 cm
Cooling type
Active
Design
80 PLUS certification
80 PLUS Titanium
Product colour
Black
Fan diameter
14 cm
Cooling type
Active
Power
Total power
1600 W
AC input voltage
115 - 240 V
AC input frequency
50 - 60 Hz
Combined power (+3.3V)
120 W
Combined power (+12V)
1599.6 W
Combined power (+5V)
120 W
Combined power (-12V)
6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
24 A
Max output current (+12V)
133.3 A
Max output current (+5V)
24 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
0.125
Ports & interfaces
Motherboard power cable length
60 cm
SATA power cable length
100-550 mm
Peripheral (Molex) power cable length
100-550 mm
PCI Express power cable length
75 cm
CPU power cable length
75 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
4
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (6-pin)
1
PCI Express power connectors (6+2 pin)
1
CPU power connector (4+4 pin)
Yes
Performance
80 PLUS certification
80 PLUS Titanium
Purpose
PC
Bearing technology
Ball bearing
Weight & dimensions
Width
150 mm
Depth
220 mm
Height
86 mm
Super Flower SF-1600F14HT power supply unit 1600 W 20+4 pin ATX Black
| Weight | 1.00 kgs |
