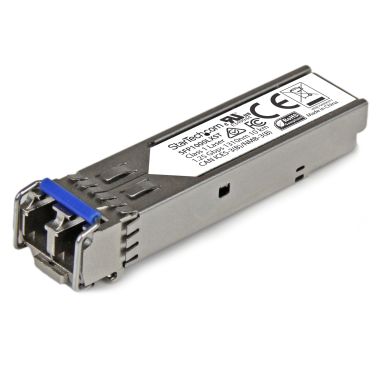

StarTech.com MSA Compliant Transceiver Module - 1000BASE-LX
In Stock
|
£38.51
£46.21 (Inc. VAT)
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Technical details
Package width
92 mm
Package height
33 mm
Hot-Plug support
Yes
Maximum transfer distance
10000 m
Wavelength
1310 nm
Duplex system
Full
Sustainability certificates
RoHS
Performance
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Wavelength-division multiplexing (WDM)
No
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum transfer distance
10000 m
Wavelength
1310 nm
Duplex system
Full
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
SFP transceiver standard
LX
Features
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Certification
CE- FCC- UR
Power
Power consumption (typical)
1 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
15 mm
Depth
59 mm
Height
12 mm
Weight
18 g
Package depth
117 mm
Package width
92 mm
Package height
33 mm
Package weight
47 g
Packaging data
Package depth
117 mm
Number of products included
1 pc(s)
Package width
92 mm
Package height
33 mm
Package weight
47 g
Certificates
Certification
CE- FCC- UR
Packaging content
Number of products included
1 pc(s)
Logistics data
Master (outer) case width
20 cm
Master (outer) case length
30.2 cm
Master (outer) case height
25.6 cm
Quantity per master (outer) case
35 pc(s)
StarTech.com MSA Compliant Transceiver Module - 1000BASE-LX
