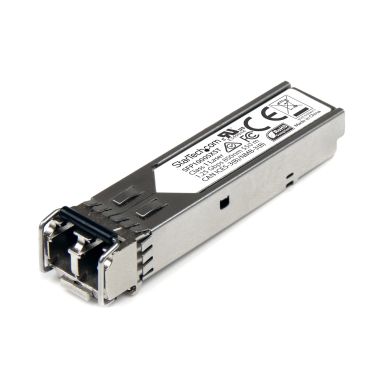

StarTech.com MSA Compliant Transceiver Module - 1000BASE-SX
In Stock
|
Call For Price
(0808 189 1246)
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Technical details
Package width
90 mm
Package height
30 mm
Hot-Plug support
Yes
Maximum transfer distance
550 m
Wavelength
850 nm
Duplex system
Full
Sustainability certificates
RoHS
Performance
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Wavelength-division multiplexing (WDM)
No
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Networking standards
IEEE 802.3z
Maximum transfer distance
550 m
Wavelength
850 nm
Duplex system
Full
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Multi-mode fiber (MMF) supported
Yes
SFP transceiver standard
SX
Features
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Certification
CE- FCC- UR
Power
Power consumption (typical)
1 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
13.9 mm
Depth
58.4 mm
Height
12.6 mm
Weight
23 g
Package depth
120 mm
Package width
90 mm
Package height
30 mm
Package weight
53 g
Packaging data
Package depth
120 mm
Number of products included
1 pc(s)
Package width
90 mm
Package height
30 mm
Package weight
53 g
Certificates
Certification
CE- FCC- UR
Packaging content
Number of products included
1 pc(s)
Logistics data
Master (outer) case width
25 cm
Master (outer) case length
30 cm
Master (outer) case height
20 cm
Quantity per master (outer) case
36 pc(s)
StarTech.com MSA Compliant Transceiver Module - 1000BASE-SX
