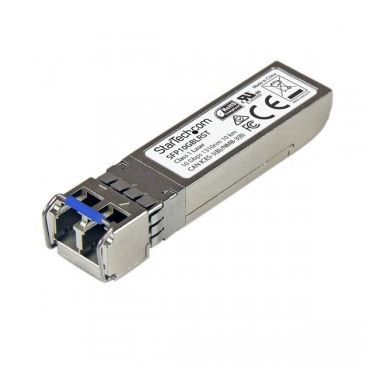

StarTech.com MSA Compliant SFP+ Transceiver Module - 10GBASE-LR
In Stock
|
Call For Price
(0808 189 1246)
Network
SFP transceiver type
Fiber optic
Fiber optic connector
LC
Networking standards
IEEE 802.3ae
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Technical details
Package width
90 mm
Package height
30 mm
Hot-Plug support
Yes
Maximum transfer distance
10000 m
Wavelength
1310 nm
Duplex system
Full
Sustainability certificates
RoHS
Performance
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
SFP transceiver type
Fiber optic
Wavelength-division multiplexing (WDM)
No
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Networking standards
IEEE 802.3ae
Maximum transfer distance
10000 m
Wavelength
1310 nm
Duplex system
Full
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
SFP transceiver standard
LR
Features
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Certification
CE- FCC- UR
Power
Power consumption (typical)
1.3 W
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
13.9 mm
Depth
58.4 mm
Height
12.6 mm
Weight
22 g
Package depth
115 mm
Package width
90 mm
Package height
30 mm
Package weight
52 g
Packaging data
Package depth
115 mm
Number of products included
1 pc(s)
Package width
90 mm
Package height
30 mm
Package weight
52 g
Certificates
Certification
CE- FCC- UR
Packaging content
Number of products included
1 pc(s)
Logistics data
Master (outer) case width
32 cm
Master (outer) case length
40.5 cm
Master (outer) case height
32 cm
Quantity per master (outer) case
80 pc(s)
