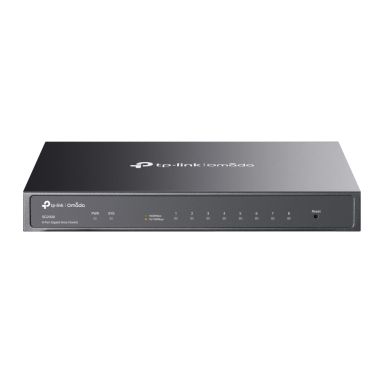

TP-Link Omada 8-Port Gigabit Smart Switch
In Stock
|
$62.26
$74.71 (Inc. VAT)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L2/L2+
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
IGMP snooping
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
No
Virtual LAN features
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of VLANs
4000
Jumbo frames
9000
Number of static routes
32
Number of IP interfaces
16
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
11.9 Mpps
Performance
Packet buffer memory
4.1 MB
Fanless
Yes
Power
Power connector
DC-in jack
Power consumption (max)
6.4 W
Power supply included
Yes
Input voltage
12 V
Input current
1 A
Power source
DC
Technical details
Product colour
Black
Security
IP-MAC-Port binding
Yes
BPDU filtering/protection
Yes
SSH/SSL support
Yes
Security algorithms
SSH, SSH-2, SSL/TLS
IGMP snooping
Yes
Access Control List (ACL)
Yes
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)
Yes
Certificates
Certification
CE, FCC, RoHS
Memory
Packet buffer memory
4.1 MB
Design
Wall mountable
Yes
Product colour
Black
LED indicators
Yes
Certification
CE, FCC, RoHS
Indication
LED indicators
Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
21.84 BTU/h
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging data
User guide
Yes
Cables included
AC
Other features
Input voltage
12 V
Packaging content
User guide
Yes
Cables included
AC
TP-Link Omada 8-Port Gigabit Smart Switch
