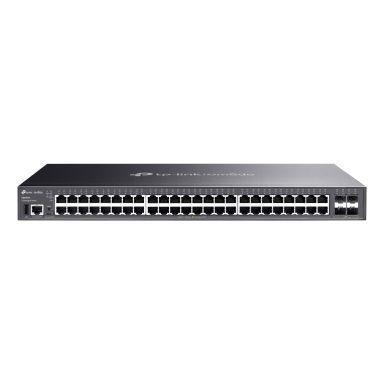

TP-Link Omada SG5452X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
In Stock
|
£485.06
£582.07 (Inc. VAT)
get it next day (UK Mainland Orders)
Management features
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
Quality of Service (QoS) support
Yes
Multicast support
Yes
Switch layer
L3
Cloud-managed
Yes
Ports & interfaces
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
48
USB 2.0 ports quantity
1
Console port
RJ-45
USB Type-C ports quantity
1
Network
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN support
Yes
Port mirroring
Yes
Number of VLANs
4000
Link aggregation
Yes
Broadcast storm control
Yes
10G support
Yes
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
IGMP snooping
Yes
Data transmission
Jumbo frames
9000
Packet buffer memory
12 MB
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
130.94 Mpps
Number of VLANs
4000
Security
IP-MAC-Port binding
Yes
Static port security
Yes
SSH/SSL support
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
MAC address filtering
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Password protection
Yes
DHCP features
DHCP relay, DHCP server
Multicast features
Multicast support
Yes
Design
Product colour
Black
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Performance
Physical stacking (units)
4
Processor frequency
1200 MHz
Memory type
DRAM
Mean time between failures (MTBF)
211.644 h
Internal memory
2000 MB
Flash memory
512 MB
Firmware upgradeable
Yes
Processor manufacturer
ARM
Telnet
Yes
Built-in processor
Yes
Fanless
Yes
Packet buffer memory
12 MB
Stackable
Yes
Power
Power consumption (max)
34.1 W
Power supply included
Yes
Surge protection voltage
6 kV
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Surge protection
Yes
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Other features
Management level
4
Bandwidth
88 Gbit/s
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
116.42 BTU/h
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44 mm
Packaging content
Rack mount kit
Yes
Quick start guide
Yes
Cables included
AC
Technical details
Physical stacking (units)
4
Product colour
Black
Stackable
Yes
Processor frequency
1200 MHz
Mean time between failures (MTBF)
211.644 h
Firmware upgradeable
Yes
Rack mounting
Yes
Built-in processor
Yes
Telnet
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory
12 MB
Memory type
DRAM
Internal memory
2000 MB
Flash memory
512 MB
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators
Yes
Packaging data
Rack mount kit
Yes
Quick start guide
Yes
Cables included
AC
TP-Link Omada SG5452X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
| Length | 22 cm |
| Width | 44 cm |
| Height | 4.4 cm |
| Weight | 1.00 kgs |
