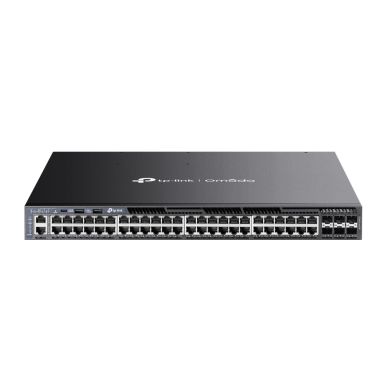

TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots
In Stock
|
Call For Price
(0808 189 1246)
Management features
Multicast support
Yes
ARP inspection
Yes
Switch type
Managed
Web-based management
Yes
System event log
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Configuring Location Settings (CLI)
Yes
Cloud-managed
Yes
Network
IGMP snooping
Yes
IGMP entries
2048
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
VLAN support
Yes
Spanning tree protocol
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
4000
IP routing
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Broadcast storm control
Yes
10G support
No
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Virtual LAN features
VLAN support
Yes
Number of VLANs
4000
Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Data transmission
Number of VLANs
4000
Jumbo frames
9000
Packet buffer memory
3 MB
MAC address table
32000 entries
Switching capacity
216 Gbit/s
Jumbo frames support
Yes
Static route
Yes
Forwarding rate
160.7 Mpps
Performance
Packet buffer memory
3 MB
Stackable
Yes
Technical details
Form factor
1U
Product colour
Black
Stackable
Yes
Rack mounting
Yes
Ports & interfaces
SFP+ module slots quantity
6
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity
2
Console port
RJ-45/USB Type-C
Security
Loop protection
Yes
Authentication
Auto VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support
Yes
IGMP snooping
Yes
Access Control List (ACL)
Yes
Authentication type
RADIUS
IGMP entries
2048
DHCP features
DHCP relay, DHCP snooping, DHCPv6 snooping
Multicast features
Multicast support
Yes
Memory
Packet buffer memory
3 MB
Design
Form factor
1U
Product colour
Black
Stackable
Yes
LED indicators
Yes
Rack mounting
Yes
Number of fans
4 fan(s)
Indication
LED indicators
Yes
Power
Power consumption (max)
1767.7 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
1440 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
6027.86 BTU/h
Weight & dimensions
Width
440 mm
Depth
420 mm
Height
44 mm
Packaging data
Manual
Yes
Cables included
AC, LAN (RJ-45)
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
Packaging content
Manual
Yes
Cables included
AC, LAN (RJ-45)
TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots
