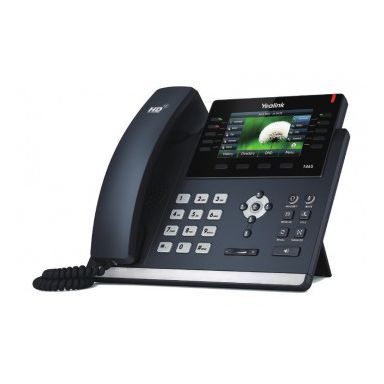

Yealink SIP-T46S T46S IP Phone
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Features | |
|---|---|
| Number of programmable keys | 10 |
| SIP registrar server | Yes |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band- Out-of band- SIP info |
| Phonebook sharing | Yes |
| Integrated voicemail | Yes |
| Handset type | Wired handset |
| Keypad illumination | Yes |
| Mounting | Desk/Wall |
| Wall mountable | Yes |
| Volume control | Digital |
| Product colour | Black |
| Technical details | |
| Number of programmable keys | 10 |
| SIP registrar server | Yes |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band- Out-of band- SIP info |
| Phonebook sharing | Yes |
| Integrated voicemail | Yes |
| Answering machine | Yes |
| Handset type | Wired handset |
| Keypad illumination | Yes |
| Mounting | Desk/Wall |
| Volume control | Digital |
| Speakerphone | Yes |
| Design | |
| Product type | IP Phone |
| Handset type | Wired handset |
| Keypad illumination | Yes |
| Mounting | Desk/Wall |
| Wall mountable | Yes |
| Product colour | Black |
| Performance | |
| Dual-Tone Multi-Frequency (DTMF) modes | In-band- Out-of band- SIP info |
| Phone features | |
| Call transfer | Yes |
| Call return | Yes |
| SIP registrar server | Yes |
| Phonebook sharing | Yes |
| Number of VoIP accounts | 16 |
| Answering machine | Yes |
| Lines quantity | 16 lines |
| Speed dialling | Yes |
| Redialing | Yes |
| Phonebook capacity | 1000 entries |
| Full duplex | Yes |
| Do not disturb function | Yes |
| Conference call | Yes |
| Caller ID | Yes |
| Call waiting | Yes |
| Call pick up | Yes |
| Call park | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Anonymous call rejection | Yes |
| Anonymous call | Yes |
| Management features | |
| Number of programmable keys | 10 |
| Integrated voicemail | Yes |
| Volume control | Digital |
| Display | |
| Touchscreen | No |
| Display resolution | 480 x 272 pixels |
| Display diagonal | 10.9 cm (4.3") |
| Display | LCD |
| Backlight display | Yes |
| Camera | |
| Front camera | No |
| Audio | |
| Voice codecs | CNG-G.711Mu-G.711a-G.722-G.723.1-G.726-G.729ab-VAD-iLBC |
| Speakerphone | Yes |
| Network | |
| Networking standards | IEEE 802.3af |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10-100-1000 Mbit/s |
| Wi-Fi | No |
| Supported network protocols | SIP v1- SIP v2- LLDP/CDP/DHCP- OpenVPN- IEEE802.1X- IPv6- FTP/TFTP/HTTP/HTTPS |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Bluetooth | No |
| Colour | |
| Product colour | Black |
| Ergonomics | |
| Wall mountable | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RJ-9 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| AC adapter output current | 2 A |
| Energy saving mode | Yes |
| Power over Ethernet (PoE) | Yes |
| AC adapter output voltage | 5 V |
| AC adapter input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 213 mm |
| Height | 185 mm |
| Package width | 274 mm |
| Package depth | 255 mm |
| Package height | 128 mm |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Number of handles included | 1 pc(s) |
| Manual | Yes |
Yealink SIP-T46S T46S IP Phone
| Length | 11.12 cm |
| Width | 10.25 cm |
| Height | 5.25 cm |
| Weight | 1.000000 kgs |
