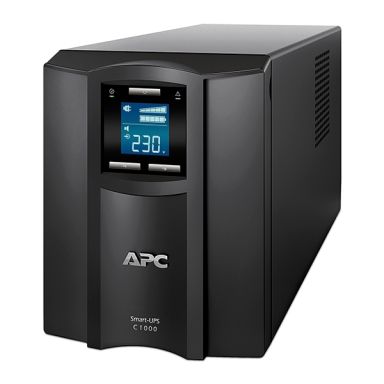

APC Smart-UPS Line-Interactive
In Stock
|
Call For Price (0808 189 1246)
Power
Output frequency regulation
50/60 Hz
Output power
600 W
Input operation voltage (min)
170 V
Input operation voltage (max)
300 V
Surge energy rating
455 J
Efficiency
98.3%
Output power capacity
1 kVA
Performance
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Status
Noise level
41 dB
Audible alarm(s)
Yes
Features
UPS topology
Line-Interactive
Waveform
Sine
Output frequency regulation
50/60 Hz
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Output power
600 W
Input operation voltage (min)
170 V
Input operation voltage (max)
300 V
Surge energy rating
455 J
Efficiency
98.3%
Noise level
41 dB
Audible alarm(s)
Yes
Output power capacity
1 kVA
Input frequency
50/60 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Number of output IEC jumpers
2
Battery
Battery life (max)
5 year(s)
Battery capacity
170 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
16.3 min
Typical backup time at full load
6 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
LED indicators
Status
Product colour
Black
Certification
CE, CSA, GOST, UL 1778, VDE, REACH, VDE-GS, EAC, C-Tick, IRAM, SABS
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Sustainability certificates
ENERGY STAR
Compliance certificates
RoHS
Weight & dimensions
Package width
328 mm
Package depth
595 mm
Package height
376 mm
Weight
17.3 kg
Width
171 mm
Package weight
19.6 kg
Height
219 mm
Depth
439 mm
Packaging data
Quick installation guide
Yes
Cables included
USB cable
Software CD
Yes
Package width
328 mm
Package depth
595 mm
Package height
376 mm
Package weight
19.6 kg
Logistics data
Products per master (outer) case
1 pc(s)
Products per pallet
18 pc(s)
Certificates
Certification
CE, CSA, GOST, UL 1778, VDE, REACH, VDE-GS, EAC, C-Tick, IRAM, SABS
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Quick installation guide
Yes
Cables included
USB cable
Software CD
Yes
APC Smart-UPS Line-Interactive
| Length | 43.9000 cm |
| Width | 17.1000 cm |
| Height | 21.9000 cm |
| Weight | 19.60 kgs |
