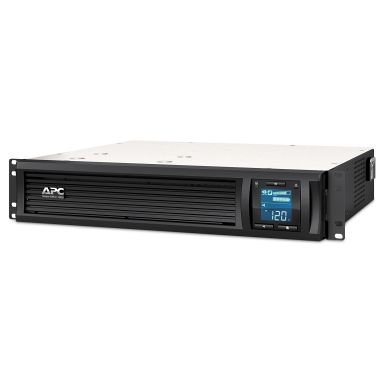

APC SMC1000I-2UC UPS Line-Interactive 1000 VA 600 W 4 AC outlet(s)

Output power

600 W

Input operation voltage (min)

170 V

Input operation voltage (max)

300 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

680 J

Output voltage Total Harmonic Distortion (THD)

5%

Output power capacity

1 kVA

Cable length

2.44 m

USB port

Yes

Serial interface

Yes

Serial interface type

RS-232

SmartSlot

Yes

AC outlets quantity

4 AC outlet(s)

AC outlet types

C13 coupler

Power plug

C14 coupler

USB 2.0 ports quantity

1

Ethernet LAN (RJ-45) ports

1

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

UPS topology

Line-Interactive

Waveform

Sine

Automatic Voltage Regulation (AVR)

Yes

Surge protection

Yes

Noise level

41 dB

Audible alarm(s)

Yes

Output frequency

50/60 Hz

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

UPS topology

Line-Interactive

Waveform

Sine

Automatic Voltage Regulation (AVR)

Yes

Output power

600 W

Input operation voltage (min)

170 V

Input operation voltage (max)

300 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

680 J

Surge protection

Yes

Output voltage Total Harmonic Distortion (THD)

5%

Noise level

41 dB

Audible alarm(s)

Yes

Output power capacity

1 kVA

Input frequency

50/60 Hz

Battery life (max)

6 year(s)

Number of batteries supported

1

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

3 h

Replacement battery cartridge

APCRBC124

Rack capacity

2U

Form factor

Rackmount

Product colour

Black

Certification

CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH

Cable length

2.44 m

Display type

LCD

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Output frequency

50/60 Hz

Sustainability certificates

ENERGY STAR, Green Premium

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

945.86

Compliance certificates

RoHS

Package width

535 mm

Package depth

570 mm

Package height

235 mm

Weight

20.5 kg

Width

432 mm

Package weight

20.7 kg

Height

86 mm

Depth

406 mm

Cables included

RJ-45, RS-232

Resource CD

Yes

Rack mount kit

Yes

Software CD

Yes

Package width

535 mm

Package depth

570 mm

Package height

235 mm

Package weight

20.7 kg

Products per pallet

16 pc(s)

Harmonized System (HS) code

85078000

Certification

CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH

Cables included

RJ-45, RS-232

Resource CD

Yes

Rack mount kit

Yes

Software CD

Yes
