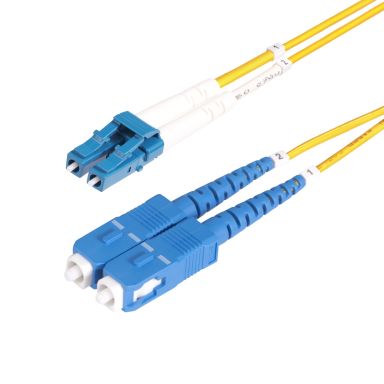

StarTech.com 2m (6.6ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss, LSZH Fiber Patch Cord
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Jacket material
Low smoke zero halogen (LSZH), Polypropylene
Fiber mode structure
Single-mode
Connector 1
LC
Connector 2
SC
Cable length
2 m
Full duplex
Yes
Core diameter
9 µm
Cladding diameter
125 µm
Insertion loss
0.3 dB
Attenuation (max)
0.35 dB/km
Sustainability compliance
Yes
Sustainability certificates
RoHS
Compliance certificates
RoHS
Features
Bending radius
1 cm
Fibre optic type
OS2
Return loss
55 dB
Jacket material
Low smoke zero halogen (LSZH), Polypropylene
Fiber mode structure
Single-mode
Connector 1
LC
Connector 2
SC
Cable length
2 m
Full duplex
Yes
Core diameter
9 µm
Cladding diameter
125 µm
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Insertion loss
0.3 dB
Data transfer rate
10 Gbit/s
Wavelengths supported
1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
Product colour
Yellow
Connector 2 gender
Male
Connector 1 gender
Male
Connector polish type
PC
Data transmission
Data transfer rate
10 Gbit/s
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Bending radius
1 cm
Cable length
2 m
Package width
200 mm
Package depth
220 mm
Package height
3 mm
Cable diameter
2 mm
Package weight
25.4 g
Packaging data
Package width
200 mm
Package depth
220 mm
Package height
3 mm
Package weight
25.4 g
Quantity per pack
1 pc(s)
Logistics data
Master (outer) case width
380 mm
Master (outer) case length
380 mm
Master (outer) case height
280 mm
Products per master (outer) case
400 pc(s)
Quantity per pack
1 pc(s)
Other features
Attenuation (max)
0.35 dB/km
StarTech.com 2m (6.6ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss, LSZH Fiber Patch Cord
