Power | |
---|---|
Output power | 700 W |
Input operation voltage (min) | 151 V |
Input operation voltage (max) | 302 V |
Surge energy rating | 459 J |
Efficiency | 98.6% |
Emergency Power Off (EPO) | O |
Output power capacity | 1 kVA |
Performance | |
Audible alarm modes | Low battery alarm- Overload alarm |
UPS topology | Line-Interactive |
Waveform | Square |
Auto-restart | Yes |
Automatic Voltage Regulation (AVR) | Yes |
LED indicators | Yes |
Noise level | 41 dB |
Audible alarm(s) | Yes |
Features | |
Audible alarm modes | Low battery alarm- Overload alarm |
UPS topology | Line-Interactive |
Waveform | Square |
Auto-restart | Yes |
Automatic Voltage Regulation (AVR) | Yes |
Output power | 700 W |
Input operation voltage (min) | 151 V |
Input operation voltage (max) | 302 V |
Surge energy rating | 459 J |
Efficiency | 98.6% |
Emergency Power Off (EPO) | O |
Noise level | 41 dB |
Audible alarm(s) | Yes |
Output power capacity | 1 kVA |
Input frequency | 50/60 Hz |
Ports & interfaces | |
USB port | Yes |
SmartSlot | Yes |
AC outlets quantity | 8 AC outlet(s) |
AC outlet types | C13 coupler |
Power plug | C14 coupler |
Number of output IEC jumpers | 2 |
Battery | |
Battery life (max) | 5 year(s) |
Battery capacity | 264 VAh |
Battery technology | Sealed Lead Acid (VRLA) |
Battery recharge time | 3 h |
Typical backup time at half load | 19 min |
Typical backup time at full load | 5.8 min |
Hot-swap battery | No |
Cold start | Yes |
Automatic battery test | Yes |
Design | |
Form factor | Tower |
LED indicators | Yes |
Product colour | Black |
Certification | CE- CSA- EAC- EN/IEC 62040-1- EN/IEC 62040-2- RCM- UL 1778- VDE- REACH- PEP- EOLI |
Display type | LCD |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 45 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15000 m |
Technical details | |
Sustainability certificates | ENERGY STAR- Green Premium- RoHS |
Harmonized System (HS) code | 85078000 |
Weight & dimensions | |
Package width | 328 mm |
Package depth | 595 mm |
Package height | 376 mm |
Weight | 18.9 kg |
Width | 171 mm |
Package weight | 22.8 kg |
Height | 219 mm |
Depth | 439 mm |
Packaging data | |
Quick installation guide | Yes |
Cables included | RS-232- USB cable |
Software CD | Yes |
Package width | 328 mm |
Package depth | 595 mm |
Package height | 376 mm |
Package weight | 22.8 kg |
Logistics data | |
Products per pallet | 12 pc(s) |
Harmonized System (HS) code | 85078000 |
Certificates | |
Certification | CE- CSA- EAC- EN/IEC 62040-1- EN/IEC 62040-2- RCM- UL 1778- VDE- REACH- PEP- EOLI |
Other features | |
Nominal output voltage | 230 V |
Nominal input voltage | 230 V |
Packaging content | |
Quick installation guide | Yes |
Cables included | RS-232- USB cable |
Software CD | Yes |

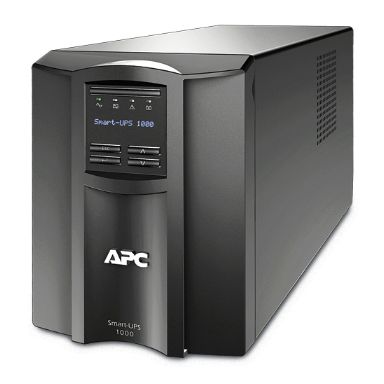

APC SMT1000IC uninterruptible power supply UPS
