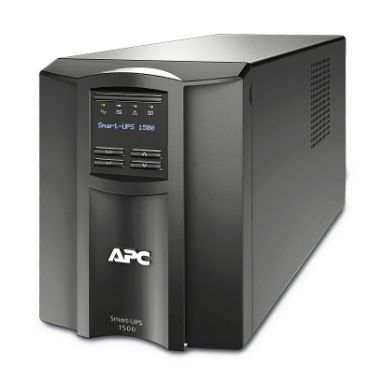

APC Smart-UPS Line-Interactive
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Power | |
|---|---|
| Output power | 1000 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 459 J |
| Efficiency | 98.7% |
| Output power capacity | 1.5 kVA |
| Ports & interfaces | |
| Cable length | 1.83 m |
| USB port | Yes |
| SmartSlot | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 2 |
| Performance | |
| Audible alarm modes | Low battery alarm- Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| LED indicators | Status |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Audible alarm modes | Low battery alarm- Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output power | 1000 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 459 J |
| Efficiency | 98.7% |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 1.5 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 408 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 23.1 min |
| Typical backup time at full load | 6.5 min |
| Hot-swap battery | No |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| LED indicators | Status |
| Product colour | Black |
| Certification | CE- CSA- EAC- EN/IEC 62040-1- EN/IEC 62040-2- RCM- UL 1778- VDE- REACH- PEP- EOLI |
| Cable length | 1.83 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | ENERGY STAR- Green Premium- RoHS |
| Weight & dimensions | |
| Package width | 328 mm |
| Package depth | 595 mm |
| Package height | 376 mm |
| Weight | 24.1 kg |
| Width | 171 mm |
| Package weight | 27.2 kg |
| Height | 219 mm |
| Depth | 439 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | RS-232- USB cable |
| Software CD | Yes |
| Package width | 328 mm |
| Package depth | 595 mm |
| Package height | 376 mm |
| Package weight | 27.2 kg |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Certificates | |
| Certification | CE- CSA- EAC- EN/IEC 62040-1- EN/IEC 62040-2- RCM- UL 1778- VDE- REACH- PEP- EOLI |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | RS-232- USB cable |
| Software CD | Yes |
