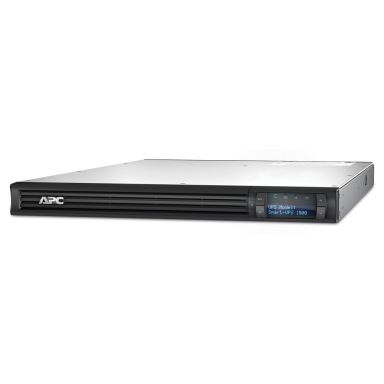

APC Smart-UPS uninterruptible power supply UPS
In Stock
|
$1087.48
$1304.98 (Inc. VAT)
Specifications
Power
Output power
1000 W
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
540 J
Efficiency
0.987
Output power capacity
1500 VA
Ports & interfaces
Cable length
2.44 m
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
AC outlets quantity
4 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Number of output IEC jumpers
2
Performance
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Status
Noise level
46 dB
Audible alarm(s)
Yes
Features
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Output power
1000 W
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
540 J
Efficiency
0.987
Noise level
46 dB
Audible alarm(s)
Yes
Output power capacity
1500 VA
Input frequency
50/60 Hz
Battery
Battery capacity
293 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
4 h
Typical backup time at half load
16.6 min
Typical backup time at full load
4.8 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
1U
Form factor
Rackmount
LED indicators
Status
Product colour
Black
Cable length
2.44 m
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Weight
24.1 kg
Width
432 mm
Height
44 mm
Depth
665 mm
Package width
575 mm
Package depth
794 mm
Package height
200 mm
Package weight
29.1 kg
Packaging data
Quick installation guide
Yes
Cables included
RS-232USB cable
Rack mount kit
Yes
Warranty card
Yes
Software CD
Yes
Package width
575 mm
Package depth
794 mm
Package height
200 mm
Package weight
29.1 kg
Logistics data
Quantity per pallet
10 pc(s)
RoHS compliance
Yes
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Quick installation guide
Yes
Cables included
RS-232USB cable
Rack mount kit
Yes
Software CD
Yes
APC Smart-UPS uninterruptible power supply UPS
| Length | 66.50 cm |
| Width | 43.20 cm |
| Height | 4.40 cm |
| Weight | 24.100000 kgs |
