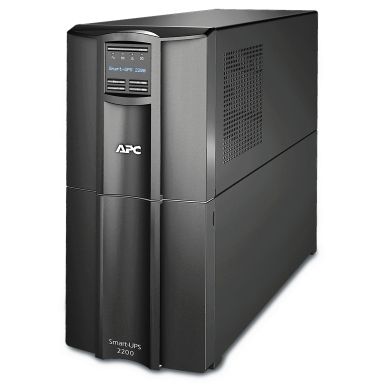

APC SMT2200IC Smart-UPS 2200VA Line-Interactive 1980 W 9 AC outlet(s)
In Stock
|
$1243.94
$1492.73 (Inc. VAT)
Specifications
Power
Output power
1980 W
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
365 J
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
0.05
Output power capacity
2200 VA
Performance
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Response time
6 ms
LED indicators
Yes
Power protection features
Over voltageOverload
Noise level
45 dB
Audible alarm(s)
Yes
Features
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Response time
6 ms
Output power
1980 W
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
365 J
Emergency Power Off (EPO)
Yes
Power protection features
Over voltageOverload
Output voltage Total Harmonic Distortion (THD)
0.05
Noise level
45 dB
Audible alarm(s)
Yes
Output power capacity
2200 VA
Input frequency
50/60 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
SmartSlot
Yes
AC outlets quantity
9 AC outlet(s)
USB 2.0 ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB port type
USB Type-A
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
25 min
Typical backup time at full load
8.7 min
Design
LED indicators
Yes
Product colour
Black
Display
LCD
Certification
CE CSA EAC EN/IEC 62040-1 EN/IEC 62040-2 RCM VDE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Weight
48.8 kg
Width
197 mm
Height
435 mm
Depth
544 mm
Package width
381 mm
Package depth
762 mm
Package height
699 mm
Package weight
61.9 kg
Packaging data
Cables included
RS-232USB cable
Software CD
Yes
Package width
381 mm
Package depth
762 mm
Package height
699 mm
Package weight
61.9 kg
Logistics data
Quantity per pallet
9 pc(s)
Certificates
Certification
CE CSA EAC EN/IEC 62040-1 EN/IEC 62040-2 RCM VDE
Packaging content
Cables included
RS-232USB cable
Software CD
Yes
APC SMT2200IC Smart-UPS 2200VA Line-Interactive 1980 W 9 AC outlet(s)
| Length | 54.40 cm |
| Width | 19.70 cm |
| Height | 43.50 cm |
| Weight | 48.800000 kgs |
