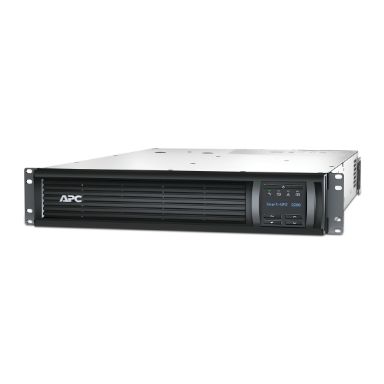

Apc Smart-Ups 2200va Line-Interactive 9 Ac Outlet(S)
In Stock
|
Call For Price
(0808 189 1246)
Power
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
375 J
Emergency Power Off (EPO)
O
Performance
Audible alarm modes
Battery replacement
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Response time
4 ms
LED indicators
Yes
Surge protection
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Web-based management
Yes
Audible alarm modes
Battery replacement
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Response time
4 ms
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
375 J
Surge protection
Yes
Emergency Power Off (EPO)
O
Noise level
55 dB
Audible alarm(s)
Yes
Input frequency
50/60 Hz
Ports & interfaces
AC outlets quantity
9 AC outlet(s)
AC outlet types
C20 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
Battery
Battery capacity
509 Ah
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
5 h
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount
LED indicators
Yes
Product colour
Black
Display
LCD
Certification
CE- EAC- EN/IEC 62040-1- EN/IEC 62040-2- GS Mark- IRAM- RCM- VDE- WEEE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Output voltage
230 V
Output frequency
50/60 Hz
Sustainability certificates
RoHS
Management features
Web-based management
Yes
Weight & dimensions
Weight
42.2 kg
Width
480 mm
Height
86 mm
Depth
683 mm
Package width
600 mm
Package depth
980 mm
Package height
254 mm
Package weight
49.6 kg
Packaging data
Quick installation guide
Yes
Cables included
Input power cable- USB cable
Resource CD
Yes
Rack mount kit
Yes
Package width
600 mm
Package depth
980 mm
Package height
254 mm
Package weight
49.6 kg
Logistics data
Products per pallet
8 pc(s)
Certificates
Certification
CE- EAC- EN/IEC 62040-1- EN/IEC 62040-2- GS Mark- IRAM- RCM- VDE- WEEE
Other features
Output voltage
230 V
Packaging content
Quick installation guide
Yes
Cables included
Input power cable- USB cable
Resource CD
Yes
Rack mount kit
Yes
Apc Smart-Ups 2200va Line-Interactive 9 Ac Outlet(S)
| Length | 68.30 cm |
| Width | 48.00 cm |
| Height | 8.60 cm |
| Weight | 42.200000 kgs |
