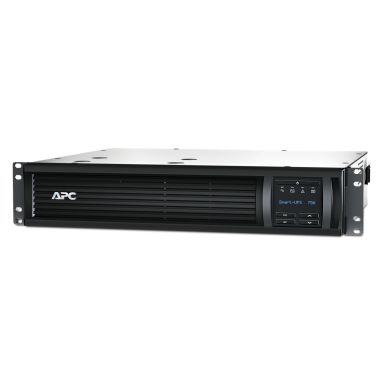

APC SMT750RMI2UC UPS Line-Interactive 750 VA 500 W 4 AC outlet(s)

Output power

500 W

Input operation voltage (min)

151 V

Input operation voltage (max)

302 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

459 J

Efficiency

97.7%

Output power capacity

0.75 kVA

Hold time (max)

2 ms

UPS topology

Line-Interactive

Waveform

Pure sine

Auto-restart

Yes

Automatic Voltage Regulation (AVR)

Yes

LED indicators

Battery replacement

Surge protection

Yes

Noise level

42 dB

Audible alarm(s)

Yes

Hold time (max)

2 ms

UPS topology

Line-Interactive

Waveform

Pure sine

Auto-restart

Yes

Automatic Voltage Regulation (AVR)

Yes

Output power

500 W

Input operation voltage (min)

151 V

Input operation voltage (max)

302 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

459 J

Efficiency

97.7%

Surge protection

Yes

Noise level

42 dB

Audible alarm(s)

Yes

Output power capacity

0.75 kVA

Input frequency

50/60 Hz

USB port

Yes

Serial interface

Yes

Serial interface type

RJ-45

SmartSlot

Yes

AC outlets quantity

4 AC outlet(s)

AC outlet types

C13 coupler

Power plug

C14 coupler

Number of output IEC jumpers

2

Battery life (max)

5 year(s)

Battery capacity

168 VAh

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

3 h

Typical backup time at half load

16 min

Typical backup time at full load

5.5 min

Hot-swap battery

Yes

Cold start

Yes

Automatic battery test

Yes

Rack capacity

2U

Form factor

Rackmount

LED indicators

Battery replacement

Product colour

Black

Certification

CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Sustainability certificates

Green Premium

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

821.3

Compliance certificates

RoHS

Certification

CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI

Compliance certificates

RoHS

Quick installation guide

Yes

Cables included

RS-232, USB cable

Rack mount kit

Yes

Software CD

Yes

Sustainability certificates

Green Premium

Package width

546 mm

Package depth

584 mm

Package height

241 mm

Weight

17.3 kg

Width

432 mm

Package weight

21.2 kg

Height

89 mm

Depth

406 mm

Quick installation guide

Yes

Cables included

RS-232, USB cable

Rack mount kit

Yes

Software CD

Yes

Package width

546 mm

Package depth

584 mm

Package height

241 mm

Package weight

21.2 kg

Products per pallet

16 pc(s)

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

821.3
