Power | |
---|---|
Output voltage regulation | =-1 - 1% |
Output power | 525 W |
Input operation voltage (min) | 160 V |
Input operation voltage (max) | 295 V |
Output operation voltage (min) | 230 V |
Output operation voltage (max) | 230 V |
Maximum current | 0.33333333333333 |
Crest factor | 0.12569444444444 |
Output power capacity | 0.75 kVA |
Performance | |
UPS topology | Line-Interactive |
Waveform | Sine |
Automatic Voltage Regulation (AVR) | Yes |
LED indicators | Yes |
Power protection features | Overload Short circuit |
Noise level | 45 dB |
Audible alarm(s) | Yes |
Features | |
Output frequency | 50/60 Hz |
UPS topology | Line-Interactive |
Waveform | Sine |
Output voltage regulation | =-1 - 1% |
Automatic Voltage Regulation (AVR) | Yes |
Output power | 525 W |
Input operation voltage (min) | 160 V |
Input operation voltage (max) | 295 V |
Output operation voltage (min) | 230 V |
Output operation voltage (max) | 230 V |
Maximum current | 0.33333333333333 |
Power protection features | Overload Short circuit |
Noise level | 45 dB |
Crest factor | 0.12569444444444 |
Audible alarm(s) | Yes |
Output power capacity | 0.75 kVA |
Input frequency | 45/65 Hz |
Ports & interfaces | |
USB port | Yes |
AC outlets quantity | 6 AC outlet(s) |
AC outlet types | IEC 320 |
Battery | |
Battery life (max) | 5 year(s) |
Number of batteries supported | 2 |
Battery voltage | 12 V |
Battery capacity | 7 Ah |
Battery technology | Sealed Lead Acid (VRLA) |
Battery recharge time | 4 h |
Cold start | Yes |
Design | |
International Protection (IP) code | IP20 |
Form factor | Tower |
LED indicators | Yes |
Product colour | Black |
Display | LCD |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 40 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Technical details | |
Output frequency | 50/60 Hz |
Weight & dimensions | |
Weight | 13.6 kg |
Width | 160 mm |
Height | 220 mm |
Depth | 410 mm |

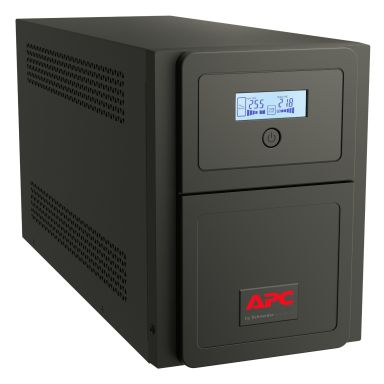

APC Easy UPS SMV uninterruptible power supply UPS
