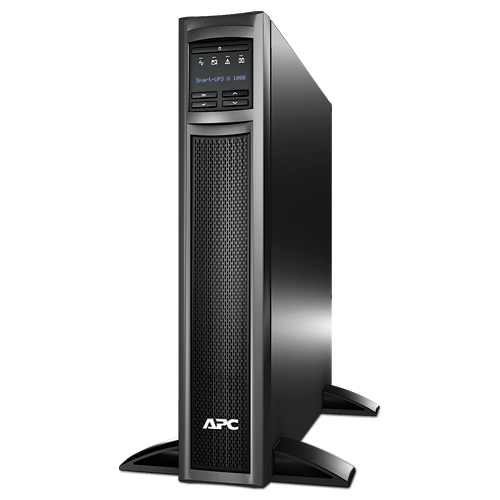

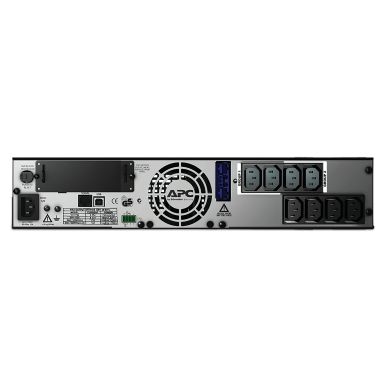

APC SMX1000I Smart-UPS Line-Interactive 1000 VA 800 W 8 AC outlet(s)
In Stock
|
$861.64
$1033.97 (Inc. VAT)
Specifications
Power
Output frequency regulation
50/60 Hz
Output power
800 W
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Surge energy rating
600 J
Efficiency
0.982
Emergency Power Off (EPO)
Yes
Output power capacity
1000 VA
Ports & interfaces
Cable length
1.83 m
USB port
Yes
SmartSlot
Yes
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Number of output IEC jumpers
2
Performance
Audible alarm modes
Low battery alarmOverload alarm
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Yes
Surge protection
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Features
Audible alarm modes
Low battery alarmOverload alarm
UPS topology
Line-Interactive
Waveform
Sine
Output frequency regulation
50/60 Hz
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Output power
800 W
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Surge energy rating
600 J
Efficiency
0.982
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
1000 VA
Input frequency
50/60 Hz
Battery
Battery capacity
299 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
24.2 min
Typical backup time at full load
8.1 min
Hot-swap battery
No
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Cable length
1.83 m
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Packaging data
Packaging content
Removable support feet
Quick installation guide
Yes
Cables included
RS-232USB cable
Rack mount kit
Yes
Software CD
Yes
Package width
589 mm
Package depth
620 mm
Package height
246 mm
Package weight
27.3 kg
Weight & dimensions
Weight
22.9 kg
Width
432 mm
Height
89 mm
Depth
490 mm
Package width
589 mm
Package depth
620 mm
Package height
246 mm
Package weight
27.3 kg
Logistics data
Quantity per pallet
8 pc(s)
RoHS compliance
Yes
Other features
Packaging content
Removable support feet
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Quick installation guide
Yes
Cables included
RS-232USB cable
Rack mount kit
Yes
Software CD
Yes
Packaging content
Removable support feet
APC SMX1000I Smart-UPS Line-Interactive 1000 VA 800 W 8 AC outlet(s)
| Length | 49.00 cm |
| Width | 43.20 cm |
| Height | 8.90 cm |
| Weight | 22.900000 kgs |
