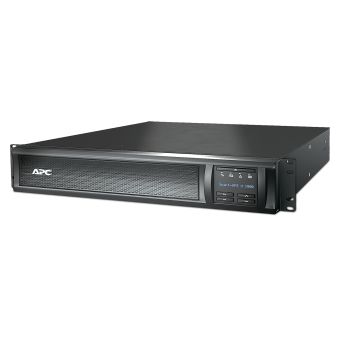

APC SMX1500RMI2U Smart-UPS Line-Interactive 1500 VA 1200 W 8 AC outlet(s)
In Stock
|
£1165.44
£1398.53 (Inc. VAT)
get it next day (UK Mainland Orders)
APC SMX1500RMI2U Smart-UPS Line-Interactive 1500 VA 1200 W 8 AC outlet(s)
Write Your Own Review
Power
Output frequency regulation
50/60 Hz
Output power
1200 W
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Surge energy rating
645 J
Efficiency
98.5%
Emergency Power Off (EPO)
Yes
Output power capacity
1.5 kVA
Ports & interfaces
Cable length
1.83 m
USB port
Yes
SmartSlot
Yes
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
Number of output IEC jumpers
2
Ethernet LAN (RJ-45) ports
0
Performance
Audible alarm modes
Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Features
Audible alarm modes
Low battery alarm, Overload alarm
UPS topology
Line-Interactive
Waveform
Sine
Output frequency regulation
50/60 Hz
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Output power
1200 W
Input operation voltage (min)
151 V
Input operation voltage (max)
302 V
Surge energy rating
645 J
Efficiency
98.5%
Emergency Power Off (EPO)
Yes
Noise level
40 dB
Audible alarm(s)
Yes
Output power capacity
1.5 kVA
Input frequency
50/60 Hz
Battery
Battery life (max)
5 year(s)
Battery capacity
311 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
17.2 min
Typical backup time at full load
5.8 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Certification
CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Cable length
1.83 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
1419.64
Compliance certificates
RoHS
Packaging data
Packaging content
Removable support feet
Quick installation guide
Yes
Cables included
RS-232, USB cable
Rack mount kit
Yes
Software CD
Yes
Package width
589 mm
Package depth
620 mm
Package height
246 mm
Package weight
30 kg
Weight & dimensions
Package width
589 mm
Package depth
620 mm
Package height
246 mm
Weight
24.8 kg
Width
432 mm
Package weight
30 kg
Height
89 mm
Depth
490 mm
Logistics data
Products per pallet
8 pc(s)
Harmonized System (HS) code
85078000
Certificates
Certification
CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Other features
Packaging content
Removable support feet
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Quick installation guide
Yes
Cables included
RS-232, USB cable
Rack mount kit
Yes
Software CD
Yes
Packaging content
Removable support feet
| Length | 62 cm |
| Width | 58.9 cm |
| Height | 24.6 cm |
| Weight | 31.98 kgs |
