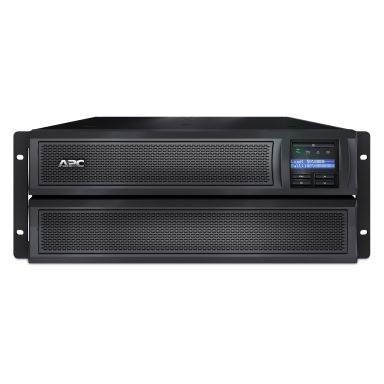

APC SMX2200HV Smart-ups uninterruptible power supply ups
0 Reviews
| Add your review
In Stock
|
£1389.27
£1667.12 (Inc. VAT)
| Specifications | |
|---|---|
| Power | |
| Output frequency regulation | 50/60 Hz |
| Output power | 1980 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 645 J |
| Efficiency | 0.981 |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 2200 VA |
| Ports & interfaces | |
| Cable length | 2 m |
| USB port | Yes |
| SmartSlot | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 couplerC19 coupler |
| Number of output IEC jumpers | 2 |
| Performance | |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | StatusBattery replacement |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output frequency regulation | 50/60 Hz |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 1980 W |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 645 J |
| Efficiency | 0.981 |
| Surge protection | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 2200 VA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery capacity | 702 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 25.3 min |
| Typical backup time at full load | 9.8 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 4U |
| Form factor | Rackmount/Tower |
| LED indicators | StatusBattery replacement |
| Product colour | BlackStainless steel |
| Display | LCD |
| Cable length | 2 m |
| RoHS compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Packaging data | |
| Packaging content | Web/SNMP Management Card |
| Quick installation guide | Yes |
| Cables included | RS-232USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Temperature sensor | Yes |
| Software CD | Yes |
| Package width | 586 mm |
| Package depth | 633 mm |
| Package height | 330 mm |
| Package weight | 47.7 kg |
| Weight & dimensions | |
| Weight | 38.6 kg |
| Width | 178 mm |
| Height | 432 mm |
| Depth | 483 mm |
| Package width | 586 mm |
| Package depth | 633 mm |
| Package height | 330 mm |
| Package weight | 47.7 kg |
| Logistics data | |
| Quantity per pallet | 6 pc(s) |
| RoHS compliance | Yes |
| Other features | |
| Packaging content | Web/SNMP Management Card |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | RS-232USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Temperature sensor | Yes |
| Software CD | Yes |
| Packaging content | Web/SNMP Management Card |
