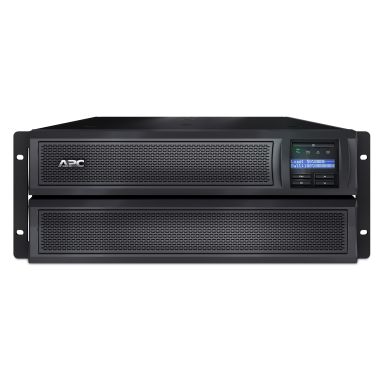

APC SMX3000HV Smart-UPS Line-Interactive 3000 VA 2700 W 10 AC outlet(s)

Output frequency regulation

50/60 Hz

Output power

2700 W

Input operation voltage (min)

140 V

Input operation voltage (max)

280 V

Output operation voltage (min)

208 V

Output operation voltage (max)

240 V

Surge energy rating

645 J

Efficiency

98.5%

Emergency Power Off (EPO)

Yes

Crest factor

3:1

Output power capacity

3 kVA

Cable length

1.83 m

SmartSlot

Yes

AC outlets quantity

10 AC outlet(s)

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

Number of output IEC jumpers

2

Hold time (min)

2 ms

Hold time (max)

10 ms

UPS topology

Line-Interactive

Waveform

Sine

Auto-restart

Yes

Automatic Voltage Regulation (AVR)

Yes

LED indicators

Status

Surge protection

Yes

Noise level

55 dB

Audible alarm(s)

Yes

Hold time (min)

2 ms

Hold time (max)

10 ms

UPS topology

Line-Interactive

Waveform

Sine

Output frequency regulation

50/60 Hz

Auto-restart

Yes

Automatic Voltage Regulation (AVR)

Yes

Output power

2700 W

Input operation voltage (min)

140 V

Input operation voltage (max)

280 V

Output operation voltage (min)

208 V

Output operation voltage (max)

240 V

Surge energy rating

645 J

Efficiency

98.5%

Surge protection

Yes

Emergency Power Off (EPO)

Yes

Noise level

55 dB

Crest factor

3:1

Audible alarm(s)

Yes

Output power capacity

3 kVA

Input frequency

50/60 Hz

Battery life (max)

5 year(s)

Battery capacity

738 VAh

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

3 h

Typical backup time at half load

18 min

Typical backup time at full load

6.25 min

Hot-swap battery

Yes

Automatic battery test

Yes

Rack capacity

4U

Form factor

Rackmount/Tower

LED indicators

Status

Product colour

Black, Stainless steel

Certification

C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH

Cable length

1.83 m

Display type

LCD

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

2447.6

Compliance certificates

RoHS

Certification

C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH

Compliance certificates

RoHS

Quick installation guide

Yes

Cables included

RS-232, USB cable

Rack mount kit

Yes

Manual

Yes

Software CD

Yes

Package width

586 mm

Package depth

633 mm

Package height

330 mm

Weight

38.6 kg

Width

178 mm

Package weight

47.7 kg

Height

432 mm

Depth

483 mm

Quick installation guide

Yes

Cables included

RS-232, USB cable

Rack mount kit

Yes

Manual

Yes

Software CD

Yes

Package width

586 mm

Package depth

633 mm

Package height

330 mm

Package weight

47.7 kg

Products per pallet

6 pc(s)

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

2447.6

Nominal output voltage

230 V
