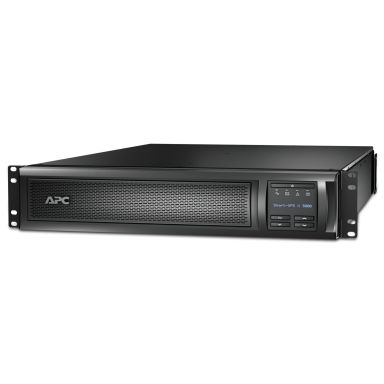

APC SMX3000RMHV2UNC Smart-UPS Line-Interactive 3000 VA 2700 W 9 AC outlet(s)

Output frequency regulation

50/60 Hz

Output power

2700 W

Output operation voltage (min)

208 V

Output operation voltage (max)

240 V

Surge energy rating

645 J

Efficiency

98.5%

Emergency Power Off (EPO)

Yes

Output power capacity

3 kVA

Cable length

2.44 m

SmartSlot

Yes

AC outlets quantity

9 AC outlet(s)

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

Number of output IEC jumpers

2

Hold time (min)

2 ms

Hold time (max)

10 ms

UPS topology

Line-Interactive

Waveform

Sine

Auto-restart

Yes

Automatic Voltage Regulation (AVR)

Yes

LED indicators

Battery replacement

Surge protection

Yes

Noise level

55 dB

Audible alarm(s)

Yes

Hold time (min)

2 ms

Hold time (max)

10 ms

UPS topology

Line-Interactive

Waveform

Sine

Output frequency regulation

50/60 Hz

Auto-restart

Yes

Automatic Voltage Regulation (AVR)

Yes

Output power

2700 W

Output operation voltage (min)

208 V

Output operation voltage (max)

240 V

Surge energy rating

645 J

Efficiency

98.5%

Surge protection

Yes

Emergency Power Off (EPO)

Yes

Noise level

55 dB

Audible alarm(s)

Yes

Output power capacity

3 kVA

Input frequency

50/60 Hz

Battery life (max)

5 year(s)

Battery capacity

738 VAh

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

3 h

Typical backup time at half load

18 min

Typical backup time at full load

6.25 min

Hot-swap battery

Yes

Automatic battery test

Yes

Rack capacity

2U

Form factor

Rackmount/Tower

LED indicators

Battery replacement

Product colour

Black

Certification

C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI

Cable length

2.44 m

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Sustainability certificates

Green Premium

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

2723.74

Compliance certificates

RoHS

Packaging content

Web/SNMP Management Card

Cables included

RS-232

Rack mount kit

Yes

Manual

Yes

Temperature sensor

Yes

Software CD

Yes

Package width

596 mm

Package depth

869 mm

Package height

85 mm

Package weight

45.4 kg

Certification

C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI

Compliance certificates

RoHS

Cables included

RS-232

Rack mount kit

Yes

Manual

Yes

Temperature sensor

Yes

Software CD

Yes

Packaging content

Web/SNMP Management Card

Sustainability certificates

Green Premium

Package width

596 mm

Package depth

869 mm

Package height

85 mm

Weight

37.3 kg

Width

432 mm

Package weight

45.4 kg

Height

85 mm

Depth

667 mm

Products per pallet

8 pc(s)

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

2723.74

Packaging content

Web/SNMP Management Card

Nominal output voltage

230 V

Nominal input voltage

230 V
