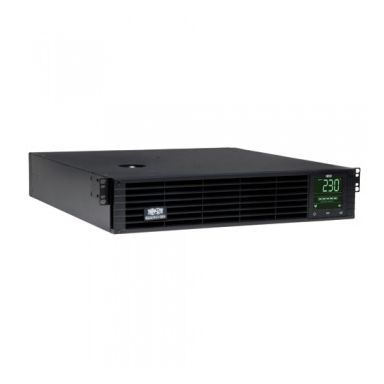

Tripp Lite SmartPro 230V 3kVA 2.7kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 2U Rack/Tower, LCD, USB, DB9 Serial
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Specifications | |
|---|---|
| Power | |
| Output voltage regulation | =-15 - 6% |
| Output power | 2700 W |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 350 J |
| Maximum current | 14.1 A |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.9 |
| Output power capacity | 3000 VA |
| Battery | |
| Battery type | BP48V24-2U BP48V60RT-3U BP48V27-2U |
| Battery recharge time | 5 h |
| Typical backup time at half load | 11.1 min |
| Typical backup time at full load | 3.9 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Number of input phases | 1 |
| LED indicators | Yes |
| EMI/RFI noise filtering | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output voltage regulation | =-15 - 6% |
| Number of input phases | 1 |
| Output power | 2700 W |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 350 J |
| Maximum current | 14.1 A |
| EMI/RFI noise filtering | Yes |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.9 |
| Output power capacity | 3000 VA |
| Ports & interfaces | |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | C13 couplerC19 coupler |
| Power plug | C20 coupler |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Display | LCD |
| Housing material | Steel |
| Weight & dimensions | |
| Weight | 28.5 kg |
| Width | 444 mm |
| Height | 89 mm |
| Depth | 495 mm |
| Package width | 603.2 mm |
| Package depth | 520.7 mm |
| Package height | 228.6 mm |
| Package weight | 40.4 kg |
| Packaging data | |
| Package width | 603.2 mm |
| Package depth | 520.7 mm |
| Package height | 228.6 mm |
| Package weight | 40.4 kg |
| Other features | |
| Battery type | BP48V24-2U BP48V60RT-3U BP48V27-2U |
| Output connections | 8 x C13 & 1 x C19 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
Tripp Lite SmartPro 230V 3kVA 2.7kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 2U Rack/Tower, LCD, USB, DB9 Serial
| Length | 49.5000 cm |
| Width | 44.4000 cm |
| Height | 8.9000 cm |
| Weight | 28.500000 kgs |
