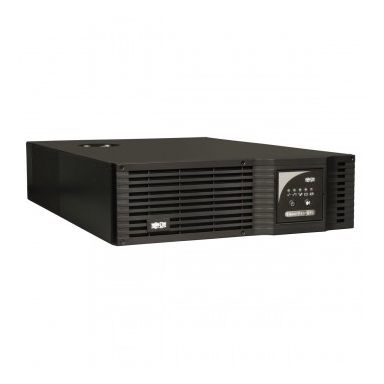

Tripp Lite SmartPro 230V 5kVA 3.75kW Line-Interactive Sine Wave UPS, 3U, Extended Run, Network Card Options, USB, DB9
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output power
3750 W
Input operation voltage (min)
230 V
Input operation voltage (max)
230 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Maximum current
27 A
Efficiency
0.98
Emergency Power Off (EPO)
Yes
Power factor
0.8
Output power capacity
5000 VA
Performance
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Yes
Surge protection
Yes
Power protection features
Over voltageUnder voltage
Audible alarm(s)
Yes
Features
Waveform
Sine
Automatic Voltage Regulation (AVR)
Yes
Output power
3750 W
Input operation voltage (min)
230 V
Input operation voltage (max)
230 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Maximum current
27 A
Efficiency
0.98
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Power protection features
Over voltageUnder voltage
Power factor
0.8
Audible alarm(s)
Yes
Output power capacity
5000 VA
Ports & interfaces
AC outlets quantity
11 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Battery
Battery recharge time
4 h
Typical backup time at half load
20 min
Typical backup time at full load
8.5 min
Hot-swap battery
Yes
Cold start
Yes
Design
Rack capacity
3U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Weight
64.9 kg
Width
444 mm
Height
133 mm
Depth
635 mm
Package width
572 mm
Package depth
800.1 mm
Package height
285.8 mm
Package weight
82.5 kg
Packaging data
Package width
572 mm
Package depth
800.1 mm
Package height
285.8 mm
Package weight
82.5 kg
Certificates
RoHS compliance
Yes
Other features
Interface
USB; DB9
Tripp Lite SmartPro 230V 5kVA 3.75kW Line-Interactive Sine Wave UPS, 3U, Extended Run, Network Card Options, USB, DB9
| Length | 63.50 cm |
| Width | 44.40 cm |
| Height | 13.30 cm |
| Weight | 64.900000 kgs |
