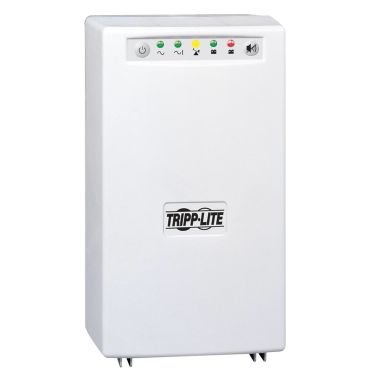

Tripp Lite SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output power
450 W
Input operation voltage (min)
220 V
Input operation voltage (max)
240 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Surge energy rating
340 J
Maximum current
3.6 A
Output power capacity
700 VA
Ports & interfaces
Cable length
1.83 m
AC outlets quantity
6 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Performance
Response time
5 ms
LED indicators
Yes
EMI/RFI noise filtering
Yes
Audible alarm(s)
Yes
Features
Response time
5 ms
Output power
450 W
Input operation voltage (min)
220 V
Input operation voltage (max)
240 V
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Surge energy rating
340 J
Maximum current
3.6 A
EMI/RFI noise filtering
Yes
Audible alarm(s)
Yes
Output power capacity
700 VA
Input frequency
50/60 Hz
Battery
Battery recharge time
3.6 h
Typical backup time at half load
36 min
Typical backup time at full load
14.5 min
Hot-swap battery
Yes
Cold start
Yes
Design
Form factor
Tower
LED indicators
Yes
Product colour
White
Cooling type
Active
Certification
CE/IEC 60601-1 FCC B
Cable length
1.83 m
RoHS compliance
Yes
Housing material
PVC
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Packaging data
Package dimensions (WxDxH)
310 x 340 x 470 mm
Package width
309.9 mm
Package depth
339.9 mm
Package height
469.9 mm
Package weight
20.6 kg
Cooling
Cooling type
Active
Weight & dimensions
Weight
19.1 kg
Width
190 mm
Height
325 mm
Depth
229 mm
Package width
309.9 mm
Package depth
339.9 mm
Package height
469.9 mm
Package weight
20.6 kg
Certificates
Certification
CE/IEC 60601-1 FCC B
RoHS compliance
Yes
Other features
Package dimensions (WxDxH)
310 x 340 x 470 mm
Nominal input voltage
230 V
Tripp Lite SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9
| Length | 22.90 cm |
| Width | 19.00 cm |
| Height | 32.50 cm |
| Weight | 19.100000 kgs |
