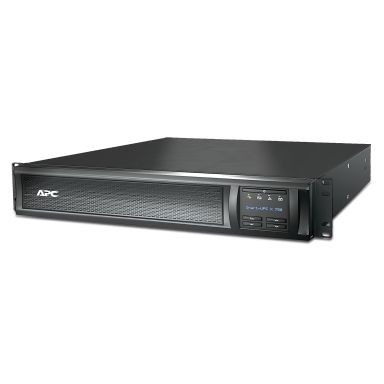

APC SMX750INC uninterruptible power supply UPS

Output power

600 W

Input operation voltage (min)

151 V

Input operation voltage (max)

302 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

645 J

Emergency Power Off (EPO)

Yes

Output power capacity

0.75 kVA

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

UPS topology

Line-Interactive

Waveform

Pure sine

Auto-restart

Yes

LED indicators

Yes

Surge protection

Yes

Noise level

40 dB

Audible alarm(s)

Yes

Temperature voltage compensation

Yes

Output frequency

50/60 Hz

Web-based management

Yes

Audible alarm modes

Alarm when on battery, Low battery alarm, Overload alarm

UPS topology

Line-Interactive

Waveform

Pure sine

Auto-restart

Yes

Output power

600 W

Input operation voltage (min)

151 V

Input operation voltage (max)

302 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

645 J

Surge protection

Yes

Emergency Power Off (EPO)

Yes

Noise level

40 dB

Audible alarm(s)

Yes

Output power capacity

0.75 kVA

Temperature voltage compensation

Yes

Input frequency

50/60 Hz

USB port

Yes

Serial interface

Yes

Serial interface type

RJ-45

SmartSlot

Yes

Cabling technology

10/100Base-T

AC outlets quantity

10 AC outlet(s)

AC outlet types

C13 coupler, IEC Jumpers

Power plug

C14 coupler

USB 2.0 ports quantity

1

Serial ports quantity

1

Ethernet LAN (RJ-45) ports

1

Battery life (max)

5 year(s)

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

3 h

Hot-swap battery

Yes

Cold start

Yes

Automatic battery test

Yes

Rack capacity

2U

Form factor

Rackmount/Tower

LED indicators

Yes

Product colour

Black

Certification

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Display type

LED

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Output frequency

50/60 Hz

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

578.01

Certification

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Web-based management

Yes

Quick installation guide

Yes

Cables included

RS-232, USB cable

Rack mount kit

Yes

Resource CD

Yes

Software CD

Yes

Package width

589 mm

Package depth

620 mm

Package height

246 mm

Weight

22 kg

Width

432 mm

Package weight

26.4 kg

Height

89 mm

Depth

490 mm

Quick installation guide

Yes

Cables included

RS-232, USB cable

Resource CD

Yes

Rack mount kit

Yes

Software CD

Yes

Package width

589 mm

Package depth

620 mm

Package height

246 mm

Package weight

26.4 kg

Products per pallet

8 pc(s)

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

578.01
