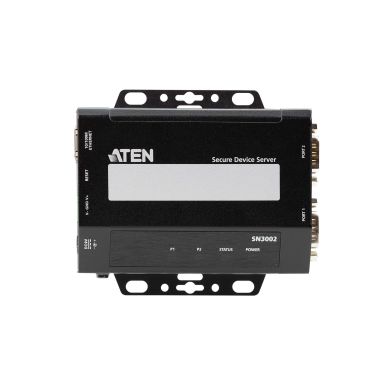

ATEN SN3002 serial server RS-232

Stop bits

1, 1.5, 2

Flow Control type

DTR/DSR, RTS/CTS, XON/XOFF

Data bits

5, 6, 7, 8

Serial ports quantity

2

Serial interface type

RS-232

RS-232 signals

CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD

Isolation

1.5 kV

Ethernet LAN data rates

10,100 Mbit/s

Certification

EMC: EN 55032/35 EMI: CISPR 32, FCC 15B A EMS: IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-1 RoHS

Baud rate

921.6 Kbit/s

Parity bit

Even, Mark, No, Odd, Space

Compliance certificates

RoHS

Ethernet LAN (RJ-45) ports

1

Cabling technology

10/100Base-T(X)

Weight

210 g

Dimensions (WxDxH)

98 x 117 x 26 mm

Power source type

DC

Input voltage

9/48 V

Storage temperature (T-T)

-40 - 75 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

0 - 60 °C

Operating relative humidity (H-H)

5 - 95%

Security algorithms

RSA, SNMP, SNMPv2, SSH, TLS

Safety

UL 60950-1, UL 62368-1

Certification

EMC: EN 55032/35 EMI: CISPR 32, FCC 15B A EMS: IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-1 RoHS

LED indicators

LAN, Power, Status

User guide

Yes

AC adapter included

Yes

Housing material

Metal

Product colour

Black

Safety

UL 60950-1, UL 62368-1

Certification

EMC: EN 55032/35 EMI: CISPR 32, FCC 15B A EMS: IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-1 RoHS
