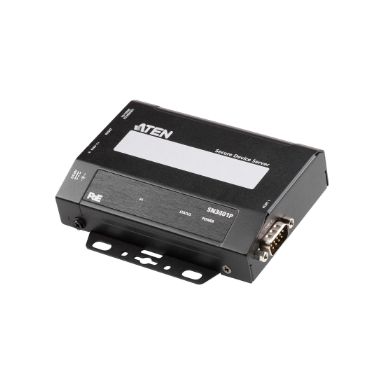

ATEN 1-Port Secure Device Server PoE
In Stock
|
£140.62
£168.74 (Inc. VAT)
Technical details
Stop bits
1, 1.5, 2
Flow Control type
DTR/DSR, RTS/CTS, XON/XOFF
Data bits
5, 6, 7, 8
Package width
59 mm
Package height
160 mm
Surge protection voltage
2 kV
Serial ports quantity
1
Serial interface type
RS-232/422/485
RS-485 signals
Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-
RS-422 signals
GND, RxD+, RxD-, TxD+, TxD-
RS-232 signals
CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD
Networking standards
IEEE 802.3af
Isolation
1.5 kV
Flow control support
Yes
Ethernet LAN data rates
10,100 Mbit/s
Electrostatic Discharge (ESD) protection
8 kV
Data transfer rate
100 Mbit/s
Baud rate
921.6 Kbit/s
Parity bit
Even, Mark, No, Odd, Space
Sustainability compliance
Yes
Sustainability certificates
UL ECOLOGO
Package volume
2265.35 cm³
Master (outer) case volume
27467.33 cm³
Compliance certificates
RoHS
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
Terminal block port
Yes
Weight & dimensions
Package weight
420 g
Package width
59 mm
Package height
160 mm
Weight
210 g
Package depth
239 mm
Width
117 mm
Depth
98 mm
Height
26 mm
Power
Power source type
DC, PoE
Input frequency
50 - 60 Hz
Output voltage
9 - 48 V
Input voltage
100 - 240 V
Power consumption (max)
1.3 W
Power consumption (typical)
1.18 W
Operational conditions
Storage temperature (T-T)
-40 - 75 °C
Operating temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Certificates
Safety
UL 60950-1, UL 62368-1
Indication
LED indicators
Power, Status
Packaging content
User guide
Yes
DIN rail kit included
Yes
Terminal block included
Yes
Number of foot pads
4 pc(s)
Design
Housing material
Metal
Product colour
Black
Safety
UL 60950-1, UL 62368-1
Reset button
Yes
DIN rail mounting
Yes
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
315 mm
Master (outer) case gross weight
5.51 kg
Master (outer) case length
490 mm
Master (outer) case height
178 mm
Country of origin
Taiwan
Package volume
2265.35 cm³
Master (outer) case volume
27467.33 cm³
Master (outer) case net weight
3.3 kg
Sustainability
Sustainability compliance
Yes
Sustainability certificates
UL ECOLOGO
