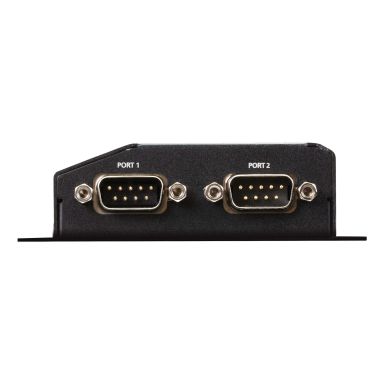

ATEN SN3402 serial server RS-232/422/485

Stop bits

1, 1.5, 2

Flow Control type

DTR/DSR, RTS/CTS, XON/XOFF

Data bits

5, 6, 7, 8

Package width

59 mm

Package height

160 mm

Surge protection voltage

2 kV

Serial ports quantity

2

Serial interface type

RS-232/422/485

RS-485 signals

Data+, Data-, GND, RxD+, RxD-, TxD+, TxD-

RS-422 signals

GND, RxD+, RxD-, TxD+, TxD-

RS-232 signals

CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD

Isolation

1.5 kV

Flow control support

Yes

Ethernet LAN data rates

10,100 Mbit/s

Electrostatic Discharge (ESD) protection

8 kV

Data transfer rate

100 Mbit/s

Baud rate

921.6 Kbit/s

Parity bit

Even, Mark, No, Odd, Space

Sustainability compliance

Yes

Sustainability certificates

UL ECOLOGO

Compliance certificates

RoHS

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Terminal block port

Yes

Package weight

480 g

Package width

59 mm

Package height

160 mm

Weight

210 g

Package depth

239 mm

Width

117 mm

Depth

98 mm

Height

26 mm

Power source type

DC

Input frequency

50 - 60 Hz

Output voltage

9 - 48 V

Input voltage

100 - 240 V

Power consumption (max)

1.3 W

Power consumption (typical)

1.19 W

Storage temperature (T-T)

-40 - 75 °C

Operating temperature (T-T)

0 - 60 °C

Operating relative humidity (H-H)

5 - 95%

Safety

UL 60950-1, UL 62368-1

LED indicators

Power, Status

User guide

Yes

DIN rail kit included

Yes

Terminal block included

Yes

Number of foot pads

4 pc(s)

Housing material

Metal

Product colour

Black

Safety

UL 60950-1, UL 62368-1

Reset button

Yes

DIN rail mounting

Yes

Country of origin

Taiwan

Sustainability compliance

Yes

Sustainability certificates

UL ECOLOGO
