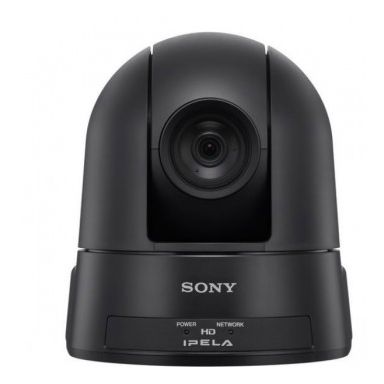

Sony SRG-300SEC video conferencing camera 2.1 MP CMOS 25.4 / 2.8 mm (1 / 2.8") 1920 x 1080 pixels 60 fps Black

Megapixel (approx.)

2.1 MP

Sensor type

CMOS

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Optical zoom

30x

Digital zoom

12x

Minimum illumination

0.35 lx

White balance

ATW, Auto, Indoor, Manual, One push, Outdoor

Focus adjustment

Auto/Manual

Signal-to-Noise Ratio (SNR)

50 dB

Noise reduction

Yes

Gain control type

Auto/Manual

Horizontal field of view (wide)

63.7°

PTZ control

Yes

Minimum working distance (wide)

1 cm

Maximum working distance (tele)

120 cm

Number of camera presets

256

Slowest camera shutter speed

1 s

Network streaming

Yes

Fastest camera shutter speed

1/10000 s

Wide Dynamic Range (WDR)

Yes

Maximum video resolution

1920 x 1080 pixels

Maximum frame rate

60 fps

Supported video modes

720p,1080i,1080p

Video formats supported

H.264

Supported graphics resolutions

640 x 360,640 x 480 (VGA),704 x 576,720 x 480,720 x 576,1024 x 576 (WSVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080)

HD type

Full HD

Baud rate

64 Kbit/s

Product colour

Black

Image stabilizer

Yes

Tilt angle range

-20 - 90°

Pan range

-170 - 170°

Tilt speed (max)

90 °/sec

Pan speed (max)

100 °/sec

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

RS-422 ports

1

3G-SDI output

Yes

Microphone in

Yes

DC input voltage

12 V

Power consumption (typical)

16.8 W

Power source type

DC

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Noise reduction

Yes

Automatic gain control

Yes

Supported network protocols

IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL

Supported network protocols

IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL

Network streaming

Yes

Mounting kit

Yes

Cables included

AC

AC adapter included

Yes

Power supply included

Yes

Wi-Fi

No

Languages support

Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Hindi, Italian, Japanese, Korean, Portuguese, Russian, Thai

Width

157 mm

Depth

163 mm

Height

164 mm

Weight

1.4 kg
