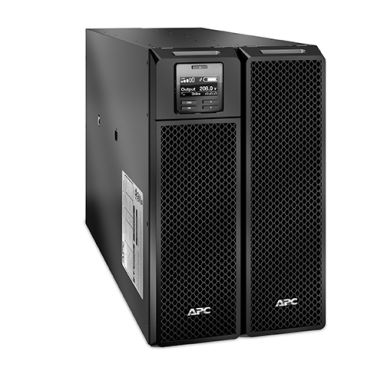

APC SRT10KXLT uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W 6 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Power
Output power
10000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Crest factor
3:1
Output power capacity
10 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
EMI/RFI noise filtering
55 dB
Audible alarm(s)
Yes
Features
UPS topology
Double-conversion (Online)
Waveform
Sine
Output power
10000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
EMI/RFI noise filtering
55 dB
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
10 kVA
Input frequency
40 - 70 Hz
Ports & interfaces
USB port
Yes
SmartSlot
Yes
Cabling technology
10/100Base-T
AC outlets quantity
6 AC outlet(s)
AC outlet types
NEMA L6-20R, NEMA L6-30R
Ethernet LAN (RJ-45) ports
2
Battery
Battery life (max)
5 year(s)
Battery capacity
1799 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
1.5 h
Design
International Protection (IP) code
IP20
Form factor
Tower
Product colour
Black
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 15000 m
Technical details
Sustainability certificates
RoHS
Harmonized System (HS) code
85078000
Compliance certificates
RoHS
Weight & dimensions
Package width
600 mm
Package depth
1000 mm
Package height
461 mm
Weight
111 kg
Width
236 mm
Package weight
126 kg
Height
432 mm
Depth
715 mm
Packaging data
Cables included
USB cable
Software CD
Yes
Package width
600 mm
Package depth
1000 mm
Package height
461 mm
Package weight
126 kg
Logistics data
Products per pallet
1 pc(s)
Harmonized System (HS) code
85078000
Packaging content
Cables included
USB cable
Software CD
Yes
APC SRT10KXLT uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W 6 AC outlet(s)
