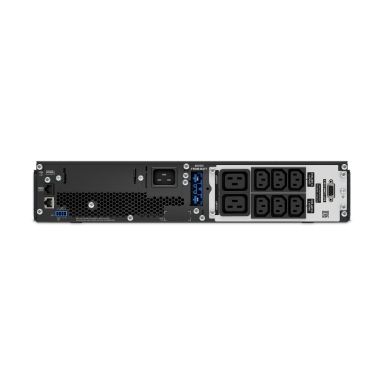

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 6x C13+2x C19 IEC, SmartSlot, Extended runtime, W/ rail kit, W/O Lithium-ion external battery
In Stock
|
Call For Price (0808 189 1246)
Power
Output power
1980 W
Input operation voltage (min)
50 V
Input operation voltage (max)
230 V
Output operation voltage (max)
230 V
Surge energy rating
432 J
Input current Total Harmonic Distortion (THD)
2%
Crest factor
3:1
Output power capacity
2.2 kVA
Ports & interfaces
Cable length
1.8 m
Emergency Power Off (EPO) connector
Yes
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
USB 2.0 ports quantity
1
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Noise level
50 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Output power
1980 W
Input operation voltage (min)
50 V
Input operation voltage (max)
230 V
Output operation voltage (max)
230 V
Surge energy rating
432 J
Noise level
50 dB
Input current Total Harmonic Distortion (THD)
2%
Crest factor
3:1
Output power capacity
2.2 kVA
Input frequency
40/70 Hz
Heat dissipation
317 BTU/h
Package type
Box
Design
International Protection (IP) code
IP20
Rack capacity
2U
Form factor
Rackmount
Product colour
Black
Cable length
1.8 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Technical details
Output frequency
50/60 Hz
Total carbon footprint (kg of CO2e)
3558.01
Warranty period
5 year(s)
Compliance certificates
CE, EAC, REACH, RoHS
Weight & dimensions
Package type
Box
Package width
749 mm
Package depth
594 mm
Package height
246 mm
Weight
22 kg
Width
85 mm
Package weight
29.6 kg
Height
432 mm
Depth
508 mm
Packaging data
Cables included
USB cable
Package type
Box
Package width
749 mm
Package depth
594 mm
Package height
246 mm
Package weight
29.6 kg
Packaging content
Cables included
USB cable
APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 6x C13+2x C19 IEC, SmartSlot, Extended runtime, W/ rail kit, W/O Lithium-ion external battery
| Length | 59.4 cm |
| Width | 74.9 cm |
| Height | 24.6 cm |
| Weight | 29.60 kgs |
