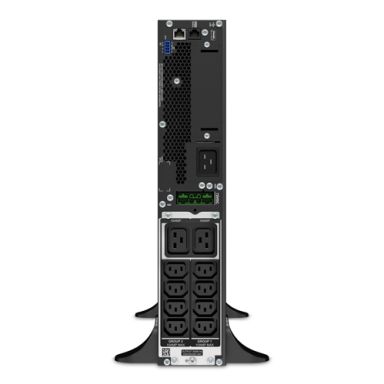

APC Smart-UPS On-Line uninterruptible power supply UPS
In Stock
|
$1848.07
$2217.68 (Inc. VAT)
Specifications
Power
Output power
1980 W
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
340 J
Efficiency
0.922
Emergency Power Off (EPO)
Yes
Crest factor
0.12569444444444
Output power capacity
2200 VA
Ports & interfaces
Cable length
2.44 m
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
C20 coupler
Number of output IEC jumpers
2
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
LED indicators
Yes
Surge protection
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Web-based management
Yes
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Output power
1980 W
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
340 J
Efficiency
0.922
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Noise level
55 dB
Crest factor
0.12569444444444
Audible alarm(s)
Yes
Output power capacity
2200 VA
Input frequency
40/70 Hz
Battery
Battery life (max)
5 year(s)
Battery capacity
367 VAh
Number of batteries supported
1
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
11.6 min
Typical backup time at full load
3.9 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
International Protection (IP) code
IP20
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Energy Star certified
Yes
Display
LCD
Cable length
2.44 m
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Output frequency
50/60 Hz
Quick installation guide
Yes
Cables included
USB cable
Bracket
Yes
Software CD
Yes
Package width
599 mm
Package depth
810 mm
Package height
246 mm
Package weight
30.8 kg
Management features
Web-based management
Yes
Weight & dimensions
Weight
25 kg
Width
85 mm
Height
432 mm
Depth
584 mm
Package width
599 mm
Package depth
810 mm
Package height
246 mm
Package weight
30.8 kg
Logistics data
Quantity per pallet
12 pc(s)
Certificates
Energy Star certified
Yes
RoHS compliance
Yes
Interface
SmartSlot
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Quick installation guide
Yes
Cables included
USB cable
Bracket
Yes
Software CD
Yes
APC Smart-UPS On-Line uninterruptible power supply UPS
| Length | 58.40 cm |
| Width | 8.50 cm |
| Height | 43.20 cm |
| Weight | 25.000000 kgs |
