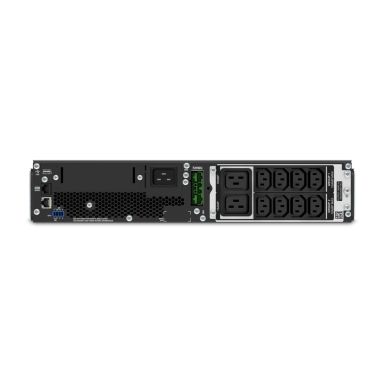

APC Smart-UPS On-Line SRT uninterruptible power supply UPS
In Stock
|
£2588.81
£3106.57 (Inc. VAT)
get it next day (UK Mainland Orders)
APC Smart-UPS On-Line SRT uninterruptible power supply UPS
Write Your Own Review
Power
Output power
2700 W
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
340 J
Efficiency
92%
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
2%
Crest factor
3:1
Output power capacity
3 kVA
Ports & interfaces
Cable length
2.44 m
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
Performance
Audible alarm modes
Battery replacement
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
LED indicators
Battery replacement
Surge protection
Yes
Power protection features
Overload
Noise level
55 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Battery replacement
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Automatic Voltage Regulation (AVR)
Yes
Output power
2700 W
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
340 J
Efficiency
92%
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Power protection features
Overload
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
3 kVA
Input frequency
40 - 70 Hz
Battery
Battery life (max)
5 year(s)
Battery capacity
505 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
3 h
Typical backup time at half load
11.8 min
Typical backup time at full load
4 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
International Protection (IP) code
IP20
Rack capacity
2U
Form factor
Rackmount
LED indicators
Battery replacement
Product colour
Black
Certification
CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Cable length
2.44 m
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Output voltage
230 V
Output frequency
50/60 Hz
Sustainability certificates
Green Premium
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
4993.35
Compliance certificates
RoHS
Certificates
Certification
CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Compliance certificates
RoHS
Packaging content
Quick installation guide
Yes
Sustainability
Sustainability certificates
Green Premium
Weight & dimensions
Package width
599 mm
Package depth
871 mm
Package height
246 mm
Weight
31.3 kg
Width
432 mm
Package weight
39.3 kg
Height
85 mm
Depth
635 mm
Packaging data
Quick installation guide
Yes
Package width
599 mm
Package depth
871 mm
Package height
246 mm
Package weight
39.3 kg
Logistics data
Products per pallet
6 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
4993.35
Other features
Output voltage
230 V
| Length | 63.5000 cm |
| Width | 43.2000 cm |
| Height | 8.5000 cm |
| Weight | 39.00 kgs |
