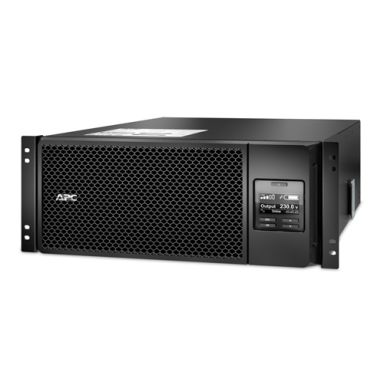

APC Smart-UPS On-Line uninterruptible power supply UPS

Output frequency regulation

50/60 Hz

Output power

6000 W

Input operation voltage (min)

100 V

Input operation voltage (max)

275 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

480 J

Efficiency

94.4%

Emergency Power Off (EPO)

Yes

Crest factor

3:1

Output power capacity

6 kVA

UPS topology

Double-conversion (Online)

Waveform

Sine

Auto-restart

Yes

Number of output phases

1

LED indicators

Status

Surge protection

Yes

Noise level

55 dB

Audible alarm(s)

Yes

UPS topology

Double-conversion (Online)

Waveform

Sine

Output frequency regulation

50/60 Hz

Auto-restart

Yes

Number of output phases

1

Output power

6000 W

Input operation voltage (min)

100 V

Input operation voltage (max)

275 V

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

480 J

Efficiency

94.4%

Surge protection

Yes

Emergency Power Off (EPO)

Yes

Noise level

55 dB

Crest factor

3:1

Audible alarm(s)

Yes

Output power capacity

6 kVA

Input frequency

40 - 70 Hz

USB port

Yes

Serial interface

Yes

SmartSlot

Yes

AC outlets quantity

10 AC outlet(s)

AC outlet types

C13 coupler, C19 coupler

Power plug

Hardwire

Number of output IEC jumpers

2

Battery life (max)

5 year(s)

Battery capacity

902 VAh

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

1.5 h

Typical backup time at half load

8.7 min

Typical backup time at full load

2.5 min

Hot-swap battery

Yes

Cold start

Yes

Automatic battery test

Yes

International Protection (IP) code

IP20

Rack capacity

4U

Form factor

Rackmount

LED indicators

Status

Product colour

Black

Certification

REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Display type

LCD

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Sustainability certificates

ENERGY STAR

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

13539.46

Compliance certificates

RoHS

Packaging content

Web/SNMP Management Card

Quick installation guide

Yes

Cables included

USB cable

Rack mount kit

Yes

Bracket

Yes

Warranty card

Yes

Temperature sensor

Yes

Software CD

Yes

Package width

610 mm

Package depth

960 mm

Package height

370 mm

Package weight

67 kg

Certification

REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Compliance certificates

RoHS

Quick installation guide

Yes

Cables included

USB cable

Rack mount kit

Yes

Bracket

Yes

Warranty card

Yes

Temperature sensor

Yes

Software CD

Yes

Packaging content

Web/SNMP Management Card

Sustainability certificates

ENERGY STAR

Package width

610 mm

Package depth

960 mm

Package height

370 mm

Weight

60 kg

Width

432 mm

Package weight

67 kg

Height

174 mm

Depth

719 mm

Products per pallet

6 pc(s)

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

13539.46

Packaging content

Web/SNMP Management Card
