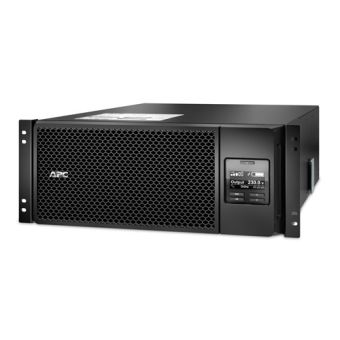

Marine Smart-UPS On-Line - USV (in Rack montierbar/extern)
In Stock
|
Call For Price (0808 189 1246)
Marine Smart-UPS On-Line - USV (in Rack montierbar/extern)
Write Your Own Review
Power
Output power
6000 W
Input operation voltage (min)
160 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Crest factor
3:1
Output power capacity
6 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
LED indicators
Yes
Surge protection
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Temperature voltage compensation
Yes
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Output power
6000 W
Input operation voltage (min)
160 V
Input operation voltage (max)
275 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
6 kVA
Temperature voltage compensation
Yes
Input frequency
40 - 70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
SmartSlot
Yes
Cabling technology
10/100Base-T
AC outlets quantity
13 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler, IEC Jumpers
Power plug
Terminal
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
Battery
Battery life (max)
5 year(s)
Number of batteries supported
1
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
1 h
Hot-swap battery
Yes
Automatic battery test
Yes
Design
International Protection (IP) code
IP20
Rack capacity
4U
Form factor
Rackmount
LED indicators
Yes
Product colour
Black
Certification
CE, EAC, RCM, VDE, REACH
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
55428.62
Compliance certificates
RoHS
Certificates
Certification
CE, EAC, RCM, VDE, REACH
Compliance certificates
RoHS
Weight & dimensions
Package width
610 mm
Package depth
960 mm
Package height
370 mm
Weight
60 kg
Width
432 mm
Height
174 mm
Depth
719 mm
Package volume
67000 cm³
Packaging data
Package volume
67000 cm³
Package width
610 mm
Package depth
960 mm
Package height
370 mm
Logistics data
Products per pallet
6 pc(s)
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
55428.62
| Length | 96 cm |
| Width | 61 cm |
| Height | 37 cm |
| Weight | 71.00 kgs |
