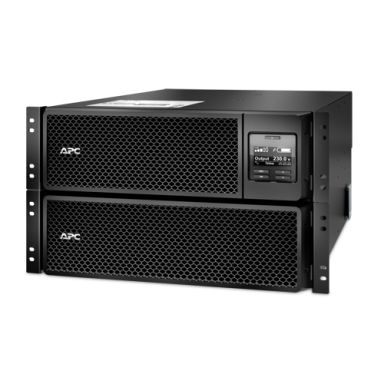

APC Smart-UPS On-Line uninterruptible power supply UPS
In Stock
|
$7093.80
$8512.56 (Inc. VAT)
Specifications
Power
Output frequency regulation
50/60 Hz
Output power
8000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
476 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Efficiency
0.948
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
0.03
Crest factor
0.12569444444444
Output power capacity
8000 VA
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Number of output phases
1
LED indicators
Status
Surge protection
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Features
UPS topology
Double-conversion (Online)
Waveform
Sine
Output frequency regulation
50/60 Hz
Auto-restart
Yes
Number of output phases
1
Output power
8000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
476 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Efficiency
0.948
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
0.03
Noise level
55 dB
Crest factor
0.12569444444444
Audible alarm(s)
Yes
Output power capacity
8000 VA
Input frequency
40 - 70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
Terminal
Number of output IEC jumpers
3
Battery
Battery life (max)
5 year(s)
Battery capacity
1728 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
1.5 h
Typical backup time at half load
14.5 min
Typical backup time at full load
5.2 min
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
Rack capacity
6U
Form factor
Rackmount/Tower
LED indicators
Status
Product colour
Black
Display
LCD
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Packaging data
Packaging content
Web/SNMP Management Card
Quick installation guide
Yes
Cables included
USB cable
Rack mount kit
Yes
Bracket
Yes
Warranty card
Yes
Temperature sensor
Yes
Software CD
Yes
Package width
600 mm
Package depth
1000 mm
Package height
461 mm
Package weight
130 kg
Weight & dimensions
Weight
111.8 kg
Width
715 mm
Height
263 mm
Depth
432 mm
Package width
600 mm
Package depth
1000 mm
Package height
461 mm
Package weight
130 kg
Logistics data
Quantity per pallet
1 pc(s)
RoHS compliance
Yes
Other features
Packaging content
Web/SNMP Management Card
Packaging content
Quick installation guide
Yes
Cables included
USB cable
Rack mount kit
Yes
Bracket
Yes
Warranty card
Yes
Temperature sensor
Yes
Software CD
Yes
APC Smart-UPS On-Line uninterruptible power supply UPS
| Length | 43.20 cm |
| Width | 71.50 cm |
| Height | 26.30 cm |
| Weight | 111.800000 kgs |
