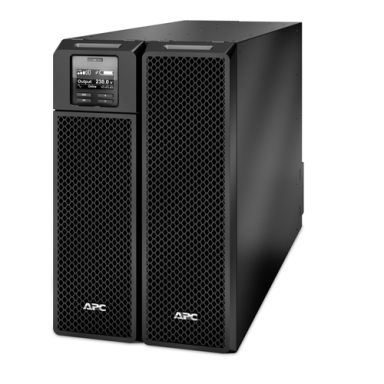

APC SRT8KXLI Smart-UPS On-Line Double-conversion 8000 VA 8000 W 10 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Specifications
Power
Output frequency regulation
50/60 Hz
Output power
8000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
476 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
0.03
Crest factor
0.12569444444444
Output power capacity
8000 VA
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Number of output phases
1
LED indicators
Status
Surge protection
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Features
UPS topology
Double-conversion (Online)
Waveform
Sine
Output frequency regulation
50/60 Hz
Auto-restart
Yes
Number of output phases
1
Output power
8000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
476 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
0.03
Noise level
55 dB
Crest factor
0.12569444444444
Audible alarm(s)
Yes
Output power capacity
8000 VA
Input frequency
40 - 70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
SmartSlot
Yes
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
Terminal
Number of output IEC jumpers
3
Battery
Battery capacity
1728 VAh
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
1.5 h
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
International Protection (IP) code
IP20
Form factor
Rackmount/Tower
LED indicators
Status
Product colour
Black
Energy Star certified
Yes
Display
LCD
RoHS compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Packaging data
Packaging content
Web/SNMP Management Card
Quick installation guide
Yes
Cables included
USB cable
Warranty card
Yes
Temperature sensor
Yes
Software CD
Yes
Package width
600 mm
Package depth
1000 mm
Package height
461 mm
Package weight
126.8 kg
Weight & dimensions
Weight
111.8 kg
Width
263 mm
Height
432 mm
Depth
715 mm
Package width
600 mm
Package depth
1000 mm
Package height
461 mm
Package weight
126.8 kg
Logistics data
Quantity per pallet
1 pc(s)
Certificates
Energy Star certified
Yes
RoHS compliance
Yes
Other features
Packaging content
Web/SNMP Management Card
Packaging content
Quick installation guide
Yes
Cables included
USB cable
Temperature sensor
Yes
Software CD
Yes
APC SRT8KXLI Smart-UPS On-Line Double-conversion 8000 VA 8000 W 10 AC outlet(s)
| Length | 71.50 cm |
| Width | 26.30 cm |
| Height | 43.20 cm |
| Weight | 111.800000 kgs |
