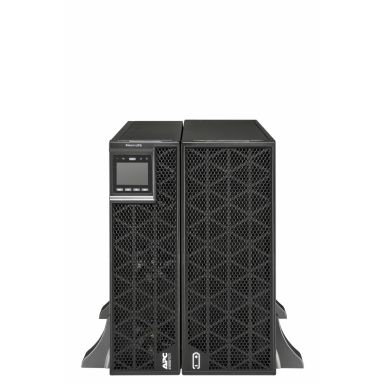

APC SRTG20KXLI uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
In Stock
|
£13228.64
£15874.37 (Inc. VAT)
Power
Output frequency regulation
0.1 Hz
Output power
20000 W
Input operation voltage (min)
160 V
Input operation voltage (max)
415 V
Output operation voltage (max)
230 V
Maximum current
87 A
Efficiency
93%
Emergency Power Off (EPO)
Yes
Input current Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Output power capacity
20 kVA
Performance
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Number of output phases
3
LED indicators
Yes
Surge protection
Yes
Noise level
58 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Output frequency regulation
0.1 Hz
Auto-restart
Yes
Number of output phases
3
Output power
20000 W
Input operation voltage (min)
160 V
Input operation voltage (max)
415 V
Output operation voltage (max)
230 V
Maximum current
87 A
Efficiency
93%
Surge protection
Yes
Emergency Power Off (EPO)
Yes
Noise level
58 dB
Input current Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
20 kVA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
SmartSlot
Yes
Battery
Battery life (max)
5 year(s)
Battery voltage
192 V
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
4 h
Cold start
Yes
Design
International Protection (IP) code
IP20
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 2011.68 m
Non-operating altitude
0 - 15240 m
Technical details
Output frequency
50/60 Hz
Harmonized System (HS) code
85078000
Weight & dimensions
Package width
590 mm
Package depth
790 mm
Package height
535 mm
Weight
142.5 kg
Width
440 mm
Height
306 mm
Depth
700 mm
Packaging data
Cables included
RS-232
Package width
590 mm
Package depth
790 mm
Package height
535 mm
Logistics data
Harmonized System (HS) code
85078000
Packaging content
Cables included
RS-232
