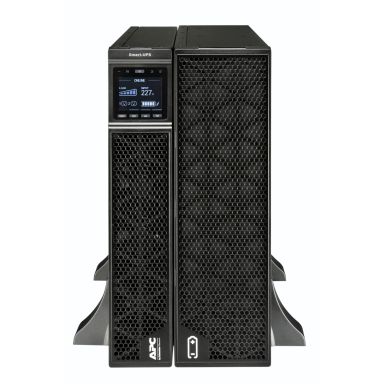

APC SRTG8KXLI uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 3 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Power
Output power
8000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
285 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output voltage Total Harmonic Distortion (THD)
2%
Output power capacity
8 kVA
ECO mode
Yes
Performance
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
LED indicators
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Auto-restart
Yes
Output power
8000 W
Input operation voltage (min)
100 V
Input operation voltage (max)
285 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Audible alarm(s)
Yes
Output power capacity
8 kVA
ECO mode
Yes
Input frequency
40/70 Hz
Ports & interfaces
Emergency Power Off (EPO) connector
Yes
USB port
Yes
Serial interface
Yes
AC outlets quantity
3 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Power plug
Hardwire
Ethernet LAN (RJ-45) ports
1
Battery
Battery life (max)
5 year(s)
Number of batteries supported
2
Battery voltage
96 V
Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
4 h
Hot-swap battery
Yes
Cold start
Yes
Automatic battery test
Yes
Design
International Protection (IP) code
IP20
Form factor
Rackmount/Tower
LED indicators
Yes
Certification
CE, EN/IEC 62040-1
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 2011.68 m
Non-operating altitude
0 - 15240 m
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Package width
590 mm
Package depth
790 mm
Package height
414 mm
Weight
81.1 kg
Width
440 mm
Package weight
83.1 kg
Height
217 mm
Depth
620 mm
Packaging data
Package width
590 mm
Package depth
790 mm
Package height
414 mm
Package weight
83.1 kg
Certificates
Certification
CE, EN/IEC 62040-1
APC SRTG8KXLI uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 3 AC outlet(s)
