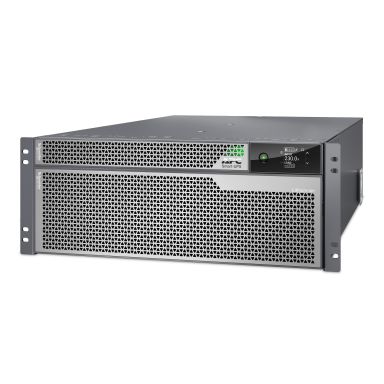

APC Smart-UPS Ultra On-Line Li-Ion SRTL8KRM4UI, 8KW, 4U Rack/Tower, 6xC13 & 6xC19, NMC
In Stock
|
Call For Price (0808 189 1246)
Power
Output power
8000 W
Input operation voltage (min)
220 V
Input operation voltage (max)
240 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
1410 J
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
5%
Crest factor
3:1
Output power capacity
8 kVA
Performance
Audible alarm modes
Alarm when on battery, Low battery alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
LED indicators
Yes
Noise level
55 dB
Audible alarm(s)
Yes
Features
Output frequency
50/60 Hz
Audible alarm modes
Alarm when on battery, Low battery alarm
UPS topology
Double-conversion (Online)
Waveform
Sine
Output power
8000 W
Input operation voltage (min)
220 V
Input operation voltage (max)
240 V
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
1410 J
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
5%
Noise level
55 dB
Crest factor
3:1
Audible alarm(s)
Yes
Output power capacity
8 kVA
Input frequency
40/70 Hz
Heat dissipation
1900 BTU/h
Ports & interfaces
USB port
Yes
SmartSlot
Yes
AC outlets quantity
12 AC outlet(s)
AC outlet types
Hard Wire 3-wire (1P + N + E), C13 coupler, C19 coupler, Hardwire
Power plug
Hardwire
Battery
Battery life (max)
10 year(s)
Battery voltage
180 V
Battery technology
Lithium-Ion (Li-Ion)
Battery recharge time
1.5 h
Typical backup time at half load
15 min
Typical backup time at full load
7 min
Design
International Protection (IP) code
IP20
Rack capacity
4U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Grey
Certification
EN/IEC 62040-1 IEC 62040-2
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15240 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
Green Premium
Compliance certificates
CE, REACH, RoHS, UKCA, VDE
Certificates
Certification
EN/IEC 62040-1 IEC 62040-2
Compliance certificates
CE, REACH, RoHS, UKCA, VDE
Packaging content
Cables included
USB cable
Sustainability
Sustainability compliance
Yes
Sustainability certificates
Green Premium
Weight & dimensions
Package width
650 mm
Package depth
1000 mm
Package height
630 mm
Weight
55 kg
Width
432 mm
Package weight
88.5 kg
Height
175 mm
Depth
832 mm
Packaging data
Cables included
USB cable
Package width
650 mm
Package depth
1000 mm
Package height
630 mm
Package weight
88.5 kg
APC Smart-UPS Ultra On-Line Li-Ion SRTL8KRM4UI, 8KW, 4U Rack/Tower, 6xC13 & 6xC19, NMC
| Length | 100 cm |
| Width | 65 cm |
| Height | 63 cm |
| Weight | 88.50 kgs |
