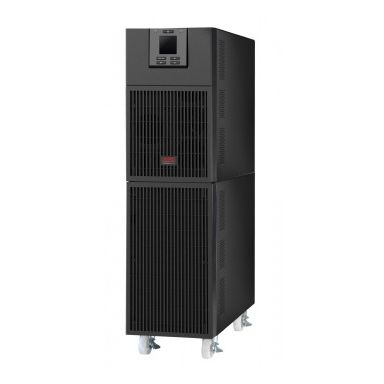

APC SRV10KI uninterruptible power supply (UPS) Double-conversion (Online) 10000 VA 10000 W
In Stock
|
Call For Price
(0808 189 1246)
Technical Specifications
Output
Max Configurable Power (Watts)
10.0kWatts /Â 10.0kVA
Efficiency at Full Load
0.94
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220 240
Load Crest Factor
0.12569444444444
Topology
Double Conversion Online
Waveform type
Sine wave
Bypass
Internal Bypass (Automatic and Manual)
Input
Input frequency
40 - 70 Hz
Input voltage range for main operations
176 - 300V
Input voltage adjustable range for mains operation
110 - 300 (half load)V
Efficiency at Full Load
0.94
Other Input Voltages
220 240
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Battery Charge Power (Watts)
531Watts
Battery Volt-Amp-Hour Capacity
1599
Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Interface Port(s)
DB-9 RS-232 Intelligent Smart Slot USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering
Surge energy rating
600Joules
Physical
Maximum Height
685MM 68.5CM
Maximum Width
190MM 19.0CM
Maximum Depth
447MM 44.7CM
Net Weight
65.0KG
Shipping weight
77.0KG
Shipping Height
910MM 91.0CM
Shipping Width
320MM 32.0CM
Shipping Depth
580MM 58.0CM
Color
Black
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 60 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
58.0dBA
Protection Class
IP 20
Conformance
APC SRV10KI uninterruptible power supply (UPS) Double-conversion (Online) 10000 VA 10000 W
| Length | 44.7000 cm |
| Width | 19.0000 cm |
| Height | 68.5000 cm |
| Weight | 65.000000 kgs |
