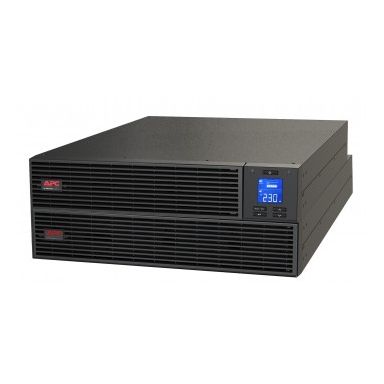

APC SRV10KRIRK uninterruptible power supply UPS
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Technical Specifications | |
|---|---|
| Output | |
| Max Configurable Power (Watts) | |
| 10.0kWatts / 10.0kVA | |
| Efficiency at Full Load | |
| 0.94 | |
| Output Frequency (sync to mains) | |
| 50/60Hz +/- 3 Hz | |
| Other Output Voltages | |
| 220 240 | |
| Load Crest Factor | |
| 0.12569444444444 | |
| Topology | |
| Double Conversion Online | |
| Waveform type | |
| Sine wave | |
| Bypass | |
| Internal Bypass (Automatic and Manual) | |
| Input | |
| Input frequency | |
| 40 - 70 Hz | |
| Input voltage range for main operations | |
| 176 - 300V | |
| Input voltage adjustable range for mains operation | |
| 110 - 300 (half load)V | |
| Efficiency at Full Load | |
| 0.94 | |
| Other Input Voltages | |
| 220 240 | |
| Batteries & Runtime | |
| Battery type | |
| Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof | |
| Typical recharge time | |
| 3hour(s) | |
| Battery Charge Power (Watts) | |
| 531Watts | |
| Battery Volt-Amp-Hour Capacity | |
| 1599 | |
| Runtime | |
| View Runtime Graph | |
| View Runtime Chart | |
| Communications & Management | |
| Interface Port(s) | |
| DB-9 RS-232 Intelligent Smart Slot USB | |
| Control panel | |
| Multi-function LCD status and control console | |
| Audible Alarm | |
| Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm | |
| Emergency Power Off (EPO) | |
| Yes | |
| Surge energy rating | |
| 600Joules | |
| Physical | |
| Maximum Height | |
| 173MM 17.3CM | |
| Maximum Width | |
| 438MM 43.8CM | |
| Maximum Depth | |
| 615MM 61.5CM | |
| Net Weight | |
| 68.0KG | |
| Shipping weight | |
| 79.0KG | |
| Shipping Height | |
| 485MM 48.5CM | |
| Shipping Width | |
| 600MM 60.0CM | |
| Shipping Depth | |
| 836MM 83.6CM | |
| Color | |
| Black | |
| Environmental | |
| Operating Temperature | |
| 0 - 40 °C | |
| Operating Relative Humidity | |
| 0 - 95 (non-condensing) % | |
| Operating Elevation | |
| 0-3000meters | |
| Storage Temperature | |
| -15 - 60 °C | |
| Storage Relative Humidity | |
| 0 - 95 (non-condensing) % | |
| Storage Elevation | |
| 0-15000meters | |
| Audible noise at 1 meter from surface of unit | |
| 58.0dBA | |
| Protection Class | |
| IP 20 | |
| Conformance |
APC SRV10KRIRK uninterruptible power supply UPS
| Length | 71.0000 cm |
| Width | 43.8000 cm |
| Height | 17.3000 cm |
| Weight | 77.000000 kgs |
