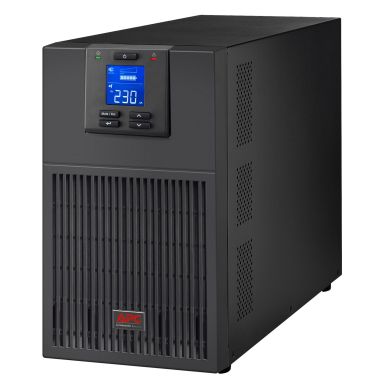

APC SRV3KI uninterruptible power supply (UPS) Double-conversion (Online) 3000 VA 2400 W 6 AC outlet(s)
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Technical Specifications | |
|---|---|
| Output | |
| Max Configurable Power (Watts) | |
| 2.4kWatts / 3.0kVA | |
| Output Voltage Note | |
| Configurable for 220 : 230 or 240 nominal output voltage | |
| Efficiency at Full Load | |
| 0.88 | |
| Output Frequency (sync to mains) | |
| 50/60Hz +/- 3 Hz | |
| Other Output Voltages | |
| 220 240 | |
| Load Crest Factor | |
| 0.12569444444444 | |
| Topology | |
| Double Conversion Online | |
| Waveform type | |
| Sine wave | |
| Bypass | |
| Internal Bypass (Automatic and Manual) | |
| Input | |
| Input frequency | |
| 40 - 70 Hz | |
| Input voltage range for main operations | |
| 160 - 280V | |
| Number of Power Cords | |
| 1 | |
| Efficiency at Full Load | |
| 0.88 | |
| Other Input Voltages | |
| 220 240 | |
| Batteries & Runtime | |
| Battery type | |
| Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof | |
| Typical recharge time | |
| 4hour(s) | |
| Battery Charge Power (Watts) | |
| 118Watts | |
| Battery Volt-Amp-Hour Capacity | |
| 473 | |
| Runtime | |
| View Runtime Graph | |
| View Runtime Chart | |
| Efficiency | |
| View Efficiency Graph | |
| Communications & Management | |
| Interface Port(s) | |
| DB-9 RS-232 USB | |
| Control panel | |
| Multi-function LCD status and control console | |
| Audible Alarm | |
| Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm | |
| Surge Protection and Filtering | |
| Surge energy rating | |
| 600Joules | |
| Physical | |
| Maximum Height | |
| 336MM 33.6CM | |
| Maximum Width | |
| 190MM 19.0CM | |
| Maximum Depth | |
| 425MM 42.5CM | |
| Net Weight | |
| 26.8KG | |
| Shipping weight | |
| 29.0KG | |
| Shipping Height | |
| 465MM 46.5CM | |
| Shipping Width | |
| 325MM 32.5CM | |
| Shipping Depth | |
| 565MM 56.5CM | |
| Color | |
| Black | |
| Environmental | |
| Operating Temperature | |
| 0 - 40 °C | |
| Operating Relative Humidity | |
| 0 - 95 (non-condensing) % | |
| Operating Elevation | |
| 0-3000meters | |
| Storage Temperature | |
| -20 - 50 °C | |
| Storage Relative Humidity | |
| 0 - 95 (non-condensing) % | |
| Storage Elevation | |
| 0-15000meters | |
| Audible noise at 1 meter from surface of unit | |
| 50.0dBA | |
| Protection Class | |
| IP 20 | |
| Conformance |
APC SRV3KI uninterruptible power supply (UPS) Double-conversion (Online) 3000 VA 2400 W 6 AC outlet(s)
| Length | 42.5000 cm |
| Width | 19.0000 cm |
| Height | 33.6000 cm |
| Weight | 0.000000 kgs |
