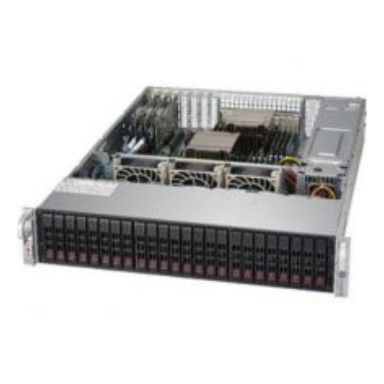

Supermicro SuperStorage Server 2028R-ACR24H
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0156105060
Hot-swap HDD bays
Yes
Processor
Maximum cache
45 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel C612
Intel Xeon series
E5-2600
Compatible processor series
Intel Xeon
Memory
Memory bus
72 bit
Supported RDIMM clock speeds
160018662133 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
16
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
512 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
24
RAID levels
0156105060
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Storage controller
LSI SAS3108
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
6
PCI Express x16 slots
1
PCI Express slots version
3
Features
Integrated BMC with IPMI
Yes
Backplanes support
Yes
Technical details
Number of storage drives supported
24
On/off switch
Yes
Number of fans
3 fan(s)
Fan diameter
3.15" (8 cm)
Certification
80 PLUS Platinum
Redundant fans support
Yes
Rack-Friendly board
Yes
Integrated BMC with IPMI
Yes
Chassis type
Rack (2U)
Backplanes support
Yes
Sustainability certificates
RoHS
Colour
Product colour
Black
Design
On/off switch
Yes
Number of fans
3 fan(s)
Fan diameter
3.15" (8 cm)
Certification
80 PLUS Platinum
Redundant fans support
Yes
Rack-Friendly board
Yes
Product colour
Black
Chassis type
Rack (2U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
4.5 - 11 A
DC output current (+12 V)
75 A
Redundant power supply (RPS) support
Yes
Power supply
920 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Height
3.5" (89 mm)
Depth
24.8" (630 mm)
Supermicro SuperStorage Server 2028R-ACR24H
| Length | 38 cm |
| Width | 29.5 cm |
| Height | 11 cm |
| Weight | 1.000000 kgs |
