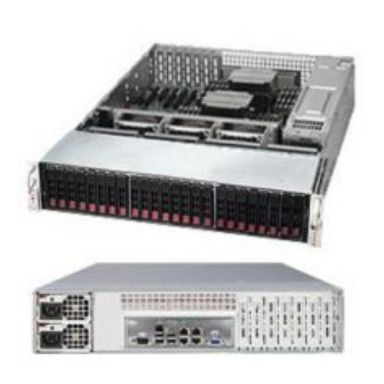

Supermicro SuperStorage Server 2028R-E1CR24N
In Stock
|
Call For Price
(0808 189 1246)
Management features
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
System bus type
QuickPath Interconnect (QPI)
Maximum cache
45 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel C612
Compatible processor series
Intel Xeon
Memory
Memory bus
72 bit
Supported memory types
DDR4-SDRAM
Number of DIMM slots
24
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
768 GB
Maximum internal memory
1536 GB
ECC
Yes
Memory mirroring supported
Yes
Storage
Number of storage drives supported
24
RAID levels
0156105060
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Intelligent Platform Management Interface (IPMI) support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel X540 Realtek RTL8201N
Ethernet LAN data rates
100100010000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
1000BASE-T100BASE-TX10GBASE-T
Ethernet interface type
10 Gigabit Ethernet Fast Ethernet Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
4
Expansion slots
PCI Express x8 slots
4
PCI Express x16 slots
2
Features
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Technical details
Number of storage drives supported
24
Number of fans
3 fan(s)
Fan diameter
3.15" (8 cm)
Trusted Platform Module (TPM) version
1.2
Trusted Platform Module (TPM)
Yes
Redundant fans support
Yes
Chassis type
Rack (2U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Yes
Processor special features
Intelligent Platform Management Interface (IPMI) support
Yes
BIOS
BIOS features
APM 1.2Plug & PlayUEFI
BIOS type
EEPROM
BIOS memory size
128 Mbit
Design
Number of fans
3 fan(s)
Fan diameter
3.15" (8 cm)
Redundant fans support
Yes
LED indicators
Yes
Product colour
Black
Chassis type
Rack (2U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+5 V)
0.16666666666667
DC output current (+12 V)
75 A
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply
920 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
61.1 lbs (27.7 kg)
Height
3.5" (89 mm)
Depth
24.8" (630 mm)
Supermicro SuperStorage Server 2028R-E1CR24N
| Length | 63.00 cm |
| Width | 43.70 cm |
| Height | 8.90 cm |
| Weight | 27.710000 kgs |
