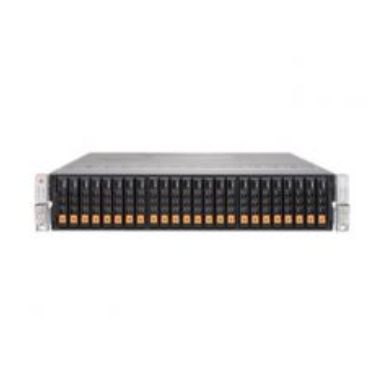

Supemicro SuperStorage Server 2029P-DN2R24L (Complete System Only)
In Stock
|
Call For Price
(0808 189 1246)
Management features
PC health monitoring
CPU Fan Temperature
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Processor family
Intel Xeon Scalable
Number of processors supported
2
Motherboard chipset
Intel C624
Processor manufacturer
Intel
Design
80 PLUS certification
80 PLUS Titanium
On/off switch
Yes
LED indicators
Yes
Product colour
Black
Chassis type
Rack (2U)
Cooling type
Active
Memory
Supported RDIMM clock speeds
2133240026662933 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
12
Maximum RDIMM memory
3000 GB
Maximum internal memory
3000 GB
ECC
Yes
Storage
Number of storage drives supported
24
Number of 2.5" bays
24
RAID levels
01
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
PC health monitoring
CPU Fan Temperature
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
Ethernet LAN data rates
10000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
6
COM ports quantity
4
Expansion slots
PCI Express slots version
3
Features
PC health monitoring
CPU Fan Temperature
Technical details
Number of storage drives supported
24
Number of 2.5" bays
24
On/off switch
Yes
Chassis type
Rack (2U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Yes
Processor special features
Intel Optane⢠Memory Ready
Yes
BIOS
BIOS type
UEFI AMI
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
9.5 - 12.5 A
DC output current (+12 V)
166.7 A
Redundant power supply (RPS) support
Yes
Power supply
2000 W
80 PLUS certification
80 PLUS Titanium
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
67 lbs (30.4 kg)
Height
3.5" (89 mm)
Depth
25.6" (650 mm)
Supemicro SuperStorage Server 2029P-DN2R24L (Complete System Only)
| Length | 65.00 cm |
| Width | 43.70 cm |
| Height | 8.90 cm |
| Weight | 30.390000 kgs |
