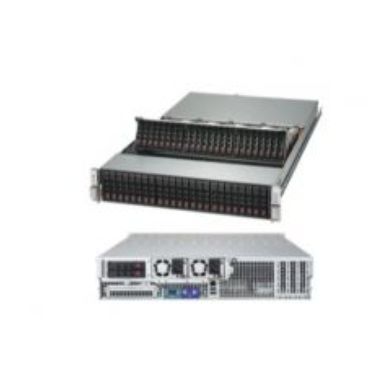

Supermicro SuperStorage Server 2029P-E1CR48H

RAID levels

0156105060

Hot-swap HDD bays

Yes

Built-in processor

No

Processor socket

LGA 3647 (Socket P)

Processor family

Intel Xeon Scalable

Number of processors supported

2

Motherboard chipset

Intel C621

80 PLUS certification

80 PLUS Titanium

Reset button

Yes

On/off switch

Yes

Chassis type

Rack (2U)

Supported RDIMM clock speeds

2133240026662933 MHz

Supported memory types

DDR4-SDRAM

Number of DIMM slots

24

Maximum internal memory

6000 GB

ECC

Yes

Number of storage drives supported

50

RAID levels

0156105060

Hot-swap HDD bays

Yes

Storage drive sizes supported

2.5"

On-board graphics adapter model

Aspeed AST2500

Ethernet LAN

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Number of SATA III connectors

8

VGA (D-Sub) ports quantity

1

USB 2.0 ports quantity

1

Serial ports quantity

1

IPMI LAN (RJ-45) port

Yes

Ethernet LAN (RJ-45) ports

1

PCI Express x8 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

2

PCI Express x8 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

2

Number of storage drives supported

50

Reset button

Yes

On/off switch

Yes

Chassis type

Rack (2U)

Sustainability certificates

RoHS

BIOS type

UEFI AMI

AC input frequency

50/60 Hz

Number of redundant power supplies installed

2

Redundant power supply (RPS) support

Yes

80 PLUS certification

80 PLUS Titanium

Storage temperature (T-T)

-40 - 60 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

8 - 90%

Width

17.2" (437 mm)

Weight

65 lbs (29.5 kg)

Height

3.5" (89 mm)

Depth

26.9" (684 mm)
